Hydraulic Line
›
Exploded View
Exploded View

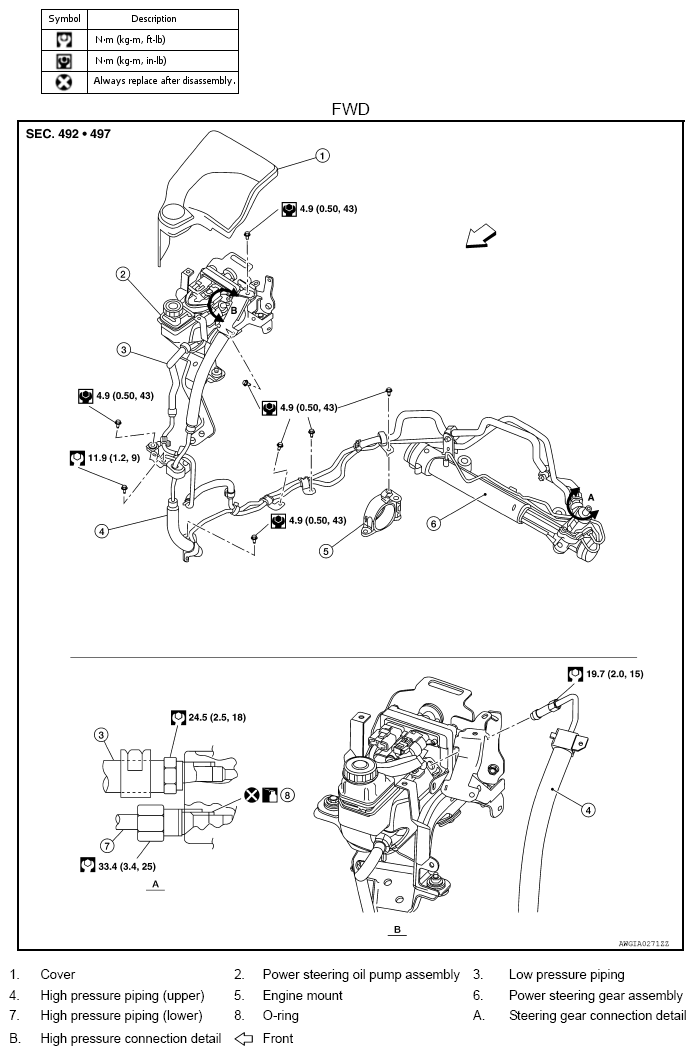

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (FWD)
Courtesy of NISSAN NORTH AMERICA, INC.

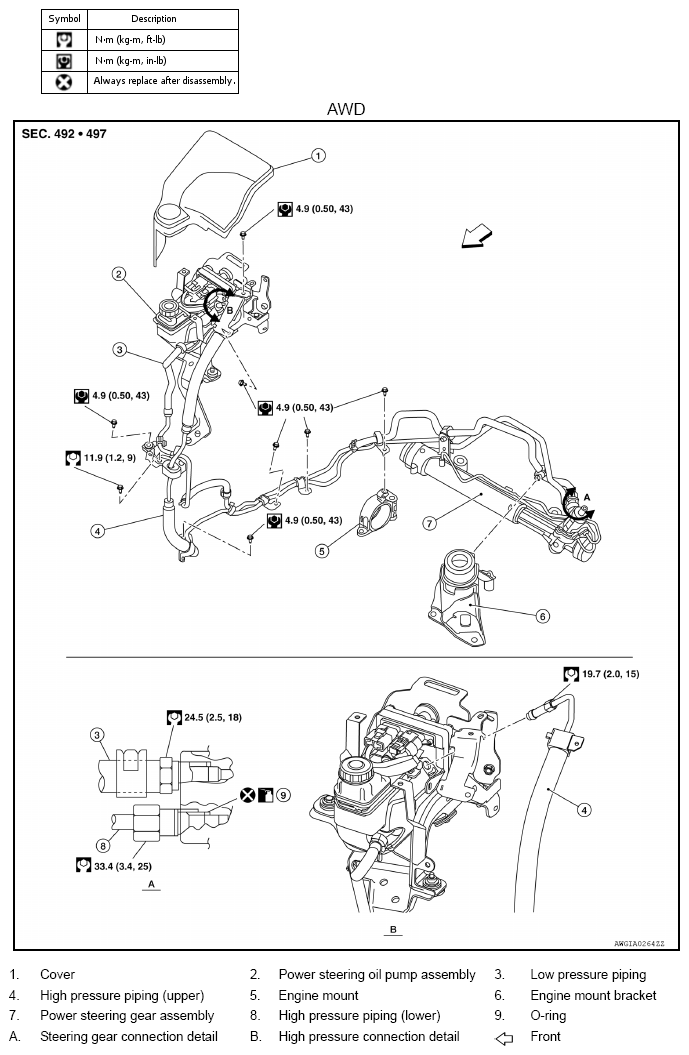

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications (AWD)
Courtesy of NISSAN NORTH AMERICA, INC.
