Infiniti
›
2013
›
JX35 AWD
›
Repair and Diagnosis
›
Steering
›
Manual Steering
›
Steering System
›
Removal And Installation
›
Steering Column
›
Exploded View
Exploded View

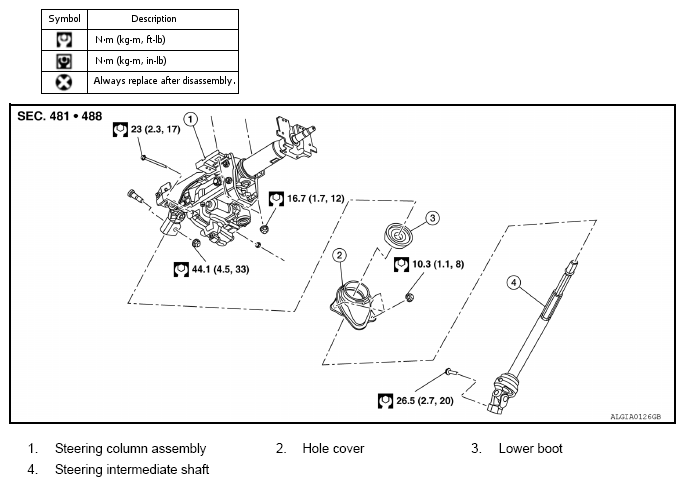

Fig 1: Exploded View Of Steering Column With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
