Front Suspension
›
Removal And Installation
›
Front Stabilizer Bar
›
Exploded View
Exploded View

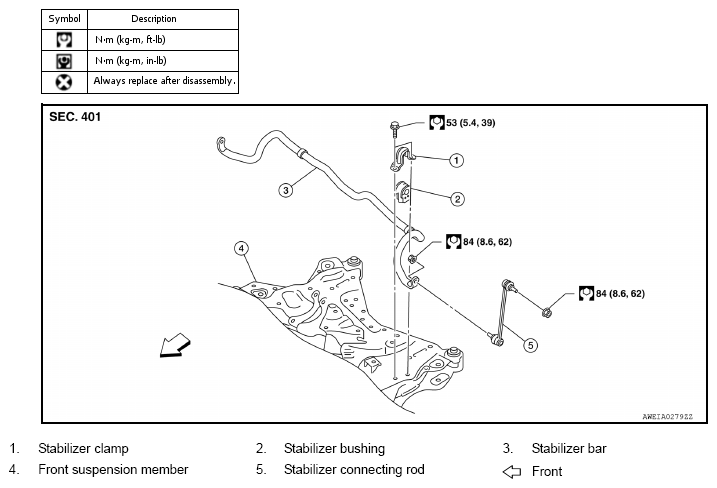

Fig 1: Exploded View Of Front Stabilizer Bar With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
