CVT Fluid Cooler System
›
Exploded View
Exploded View

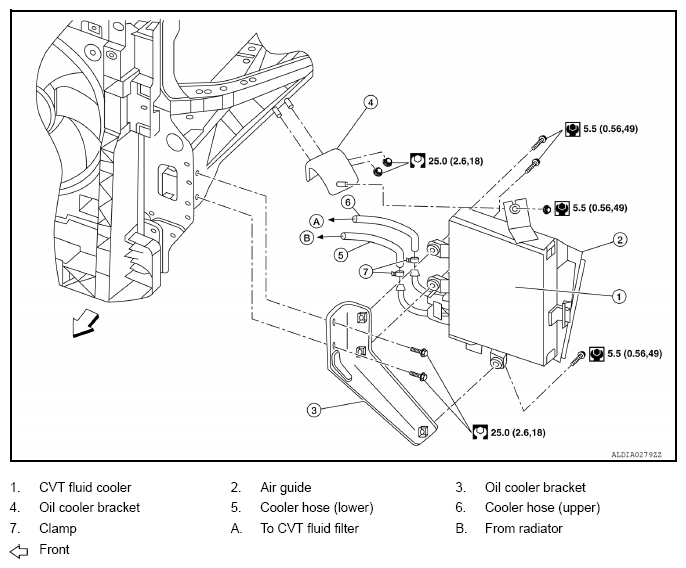

Fig 1: Exploded View Of CVT Fluid Cooler System With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
