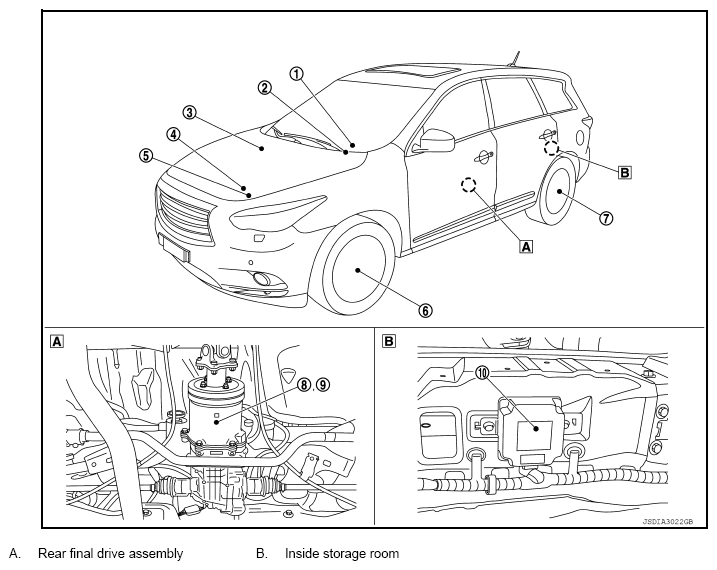

Component Parts Location
| No. | Component parts | Reference/Function |
|---|---|---|
| 1 | Combination meter (AWD warning icon/display) | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to
"AWD SYSTEM: SYSTEM DESCRIPTION " Refer to "METER SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location. |
| 2 | Steering angle sensor | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to
"AWD SYSTEM: SYSTEM DESCRIPTION " Refer to "COMPONENT PARTS LOCATION " for detailed installation location. |
| 3 | ABS actuator and electric unit (control unit) | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to
"AWD SYSTEM: SYSTEM DESCRIPTION " Refer to "COMPONENT PARTS LOCATION " for detailed installation location. |
| 4 | TCM | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to
"AWD SYSTEM: SYSTEM DESCRIPTION " Refer to "CVT CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location. |
| 5 | ECM | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to
"AWD SYSTEM: SYSTEM DESCRIPTION " Refer to "ENGINE CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location. |
| 6 | Front wheel sensor | "WHEEL SENSOR AND SENSOR ROTOR " |
| 7 | Rear wheel sensor | |
| 8 | AWD solenoid | "AWD SOLENOID " |
| 9 | Electric controlled coupling | "ELECTRIC CONTROLLED COUPLING " |
| 10 | AWD control unit | "AWD CONTROL UNIT " |
