Sectional View
Sectional View

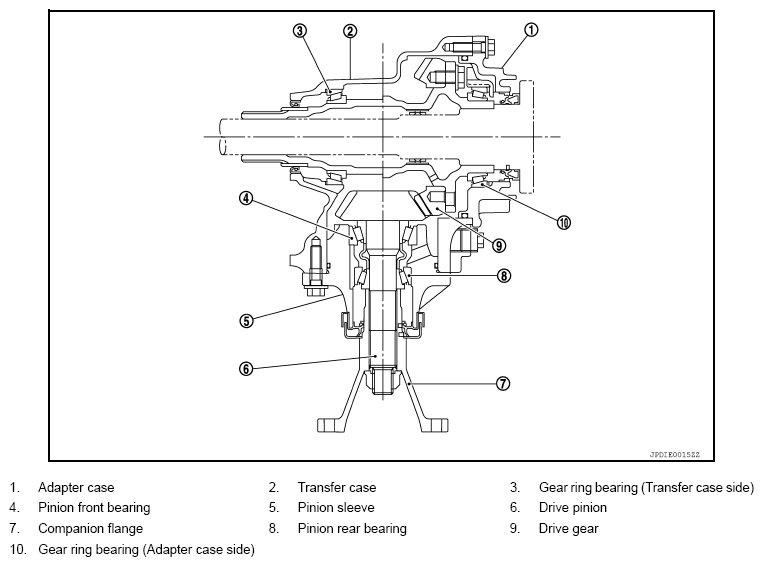

Fig 1: Sectional View Of Transfer Case
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
