Infiniti
›
2013
›
JX35 AWD
›
Repair and Diagnosis
›
Transmission
›
Transfer Case
›
System Description
›
System
›
AWD System
›
AWD SYSTEM: Circuit Diagram
AWD SYSTEM: Circuit Diagram

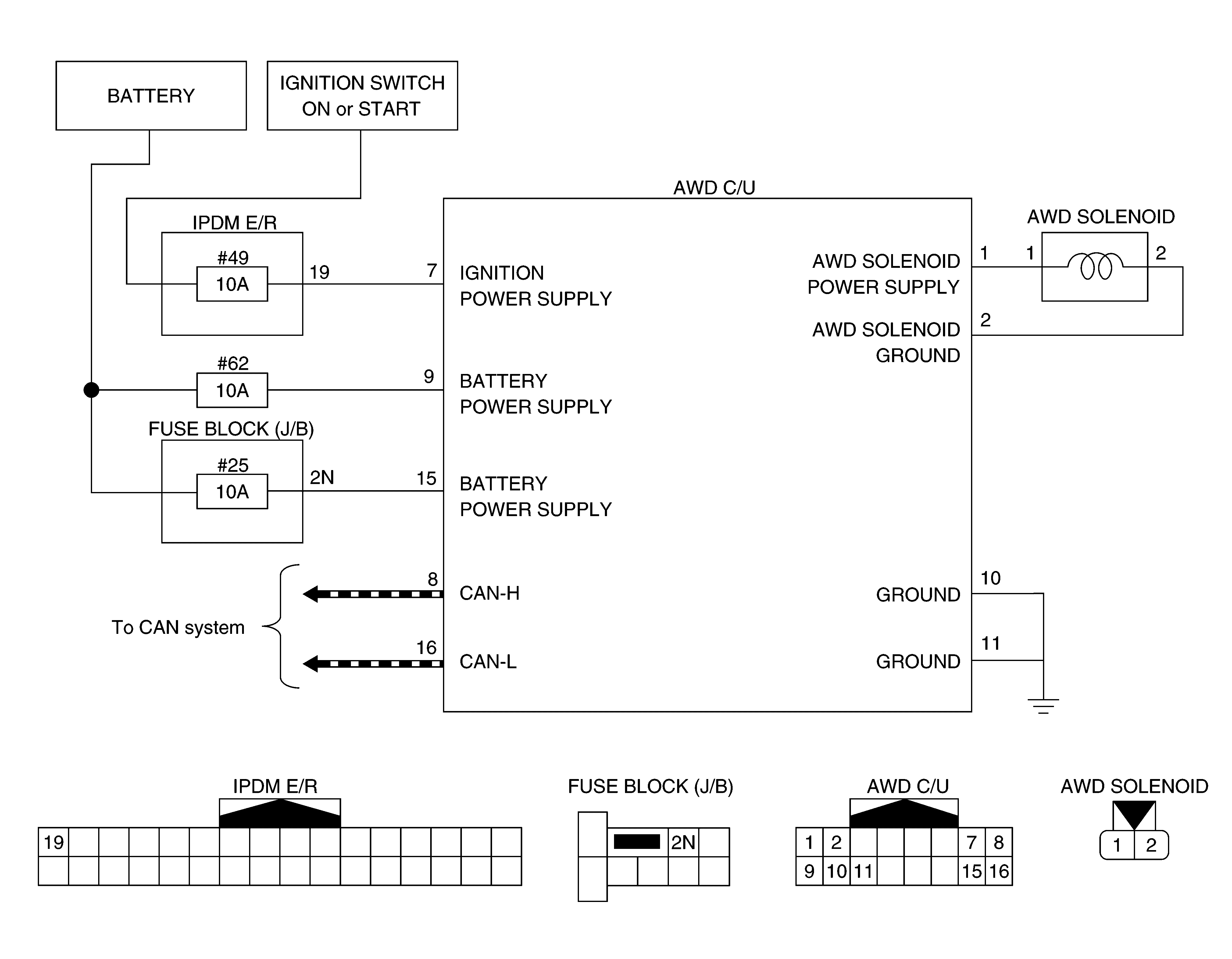

Fig 1: AWD System Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
