Inside Mirror
›
Exploded View
Exploded View

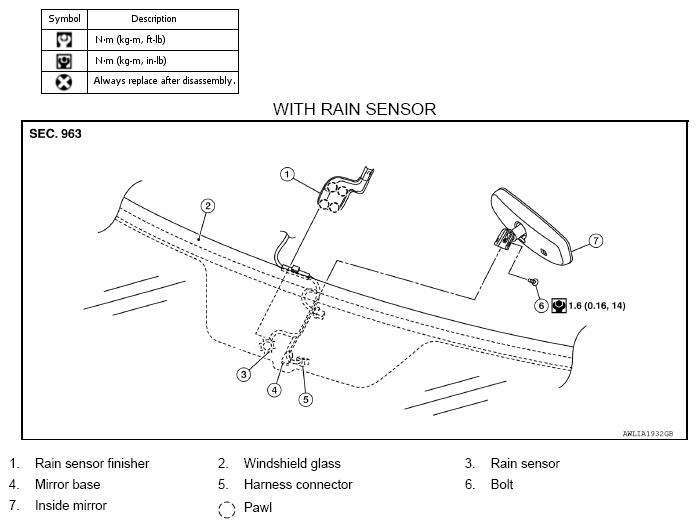

Fig 1: Exploded View Of Inside Mirror (With Rain Sensor)
Courtesy of NISSAN NORTH AMERICA, INC.

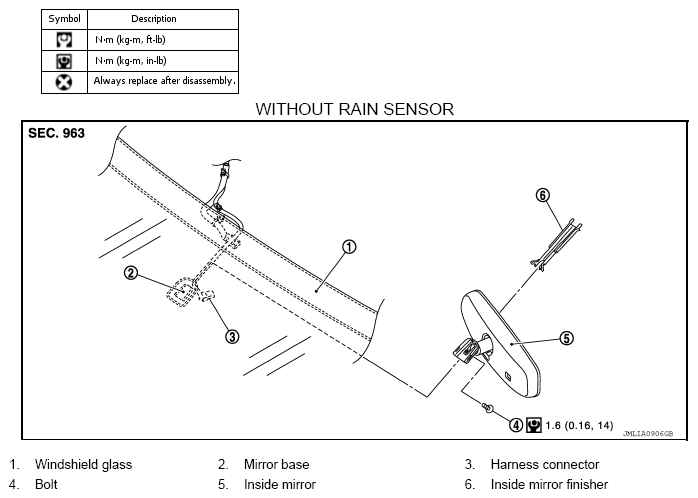

Fig 2: Exploded View Of Inside Mirror (Without Rain Sensor)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
