Exploded View: RH

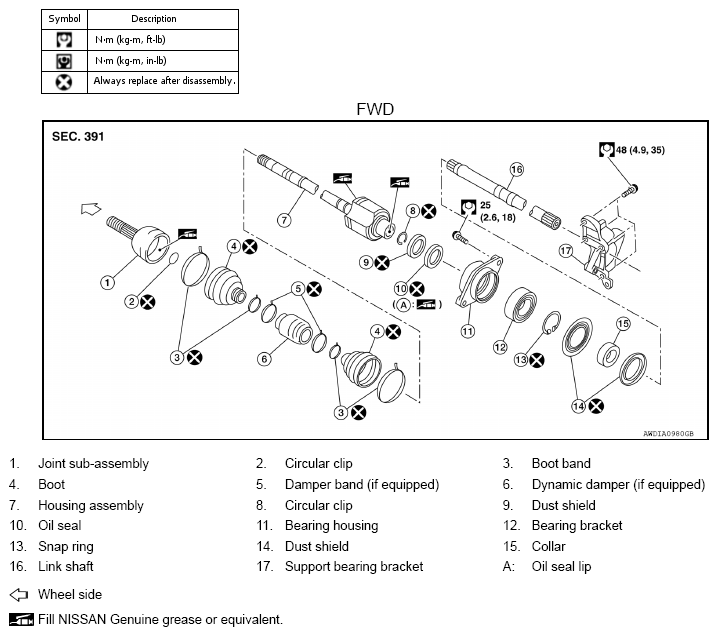

Fig 1: Exploded View Of Front Drive Shaft Boot With Torque Specifications (RH, FWD)
G08856264Courtesy of NISSAN NORTH AMERICA, INC.

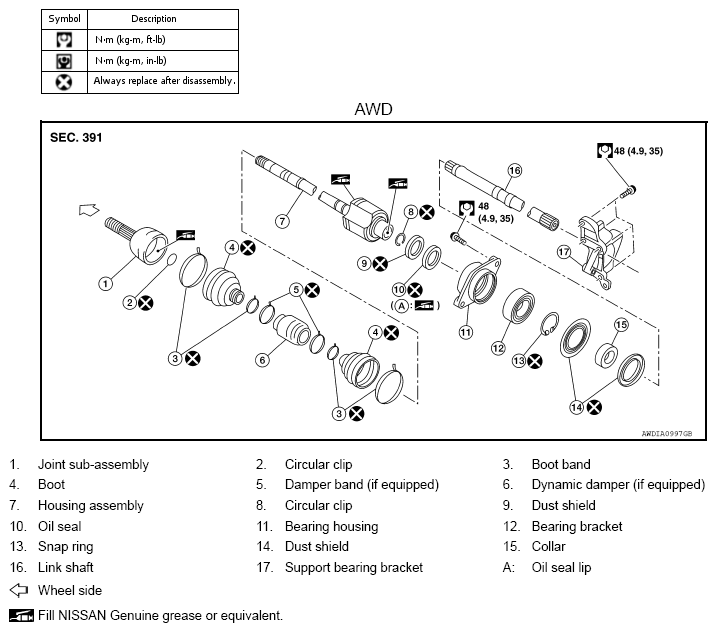

Fig 2: Exploded View Of Front Drive Shaft Boot With Torque Specifications (RH, AWD)
G08856265Courtesy of NISSAN NORTH AMERICA, INC.
