Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
System Description
›
Lubrication System
›
Schematic
Lubrication System: Schematic

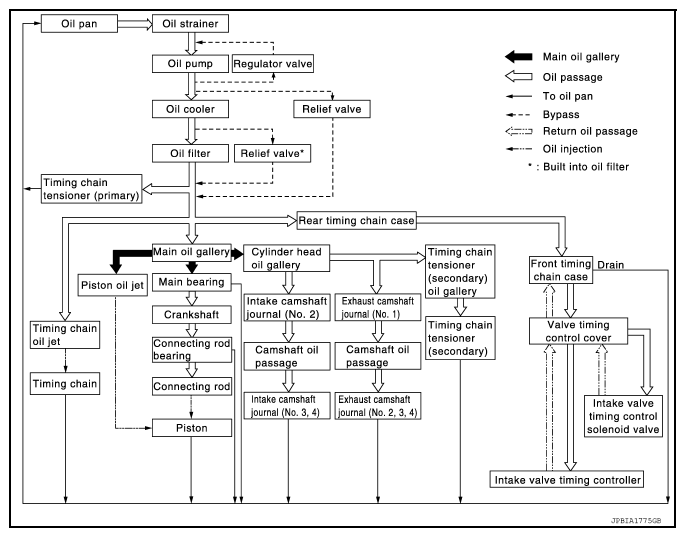

Fig 1: Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
