Seat Belt Control System
›
System Description
›
System
›
System Diagram
System Diagram

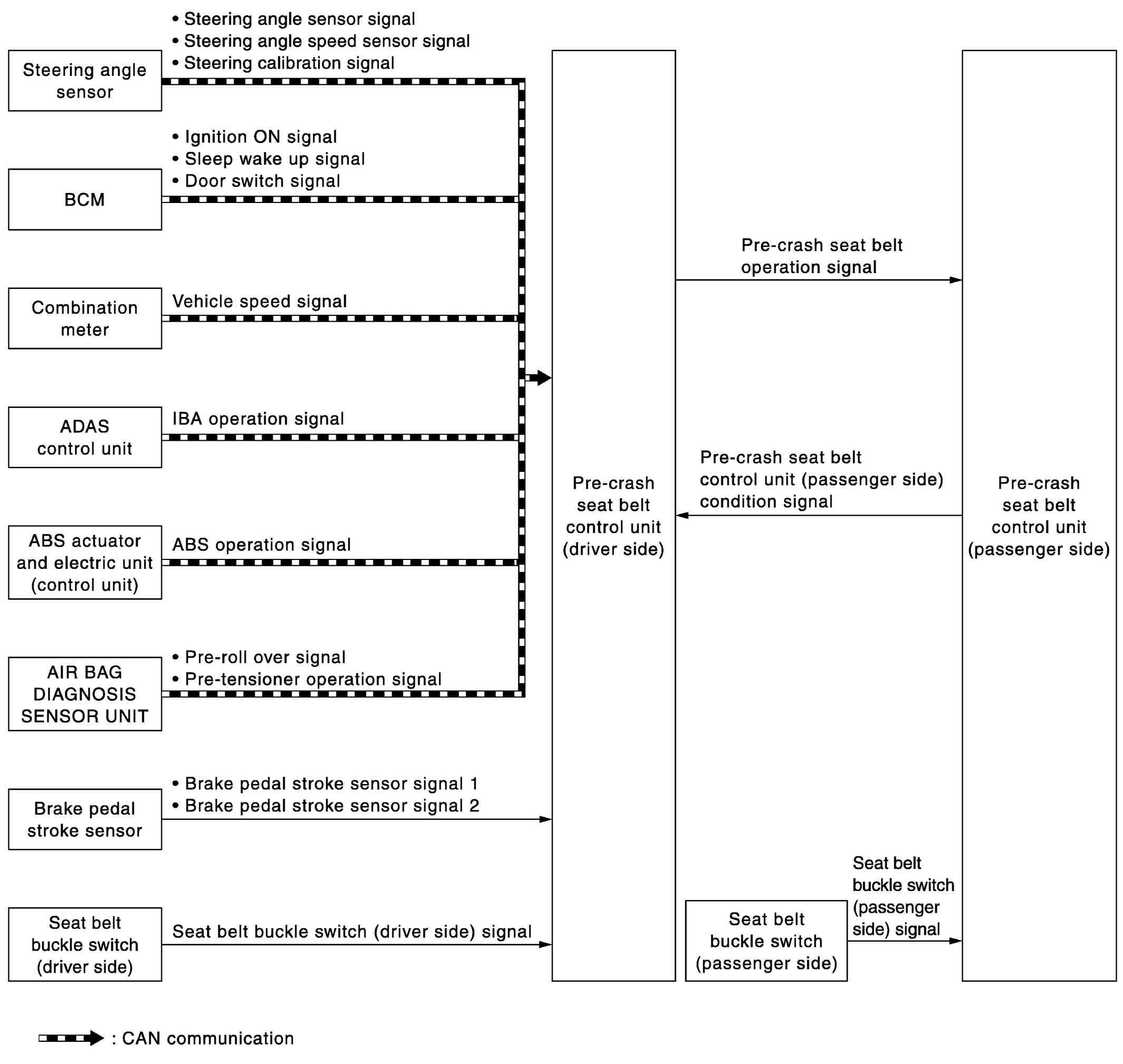

Fig 1: Seat Belt Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
