Removal and Installation: Removal

  1. Remove front body side welt. Refer to "BODY SIDE WELT: REMOVAL AND INSTALLATION ".
  2. Remove instrument side finisher LH. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  4. Disconnect NATS antenna amp. connector and push-button ignition switch connector.
  5. Disengage the NATS antenna amp. fixing pawls while pushing NATS antenna amp. from its back side, so that NATS antenna amp. and push-button ignition switch are lifted up from instrument panel assembly.

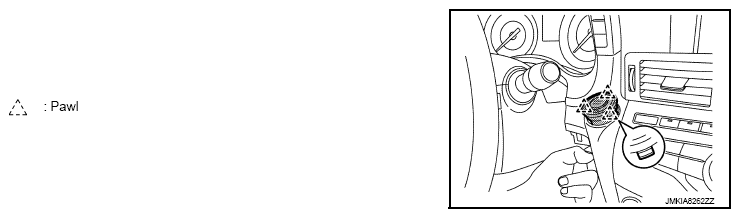

    Fig 1: Disengaging NATS Antenna Amp. Fixing Pawls
    G08902499Courtesy of NISSAN NORTH AMERICA, INC.
  6. While pushing the push-button ignition switch from its back side, disengage the push-button ignition switch fixing pawls using a minus driver etc., and then remove push-button ignition switch.

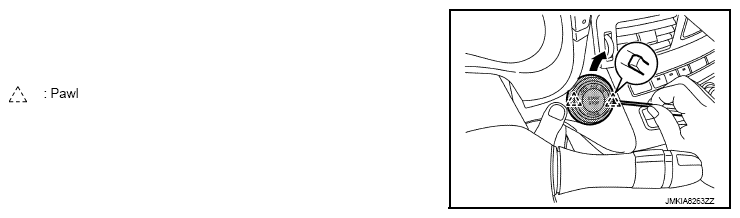

    Fig 2: Removing Push-Button Ignition Switch Using Screwdriver
    G08902500Courtesy of NISSAN NORTH AMERICA, INC.
