FixVault
Home
›
Infiniti
›
2013
›
M35h
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Removal And Installation
›
Oil Pump
›
Exploded View
Exploded View

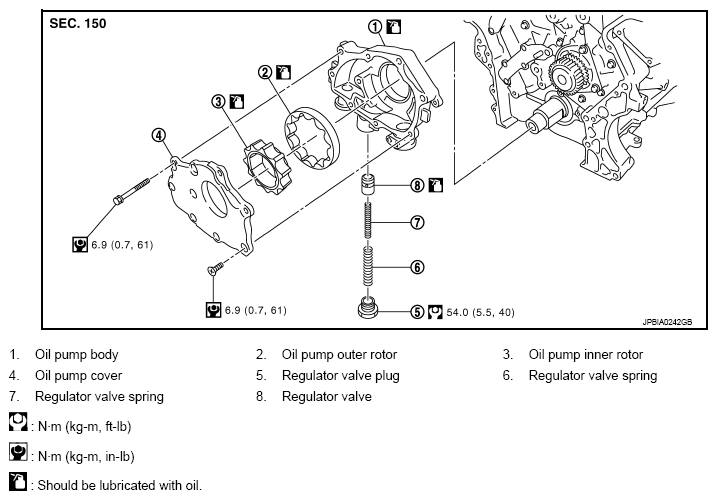

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
