WARNING: This page is about a different car, the 2012 Infiniti M35h. However, it is still accessible from the selected car via links, so may be relevant.

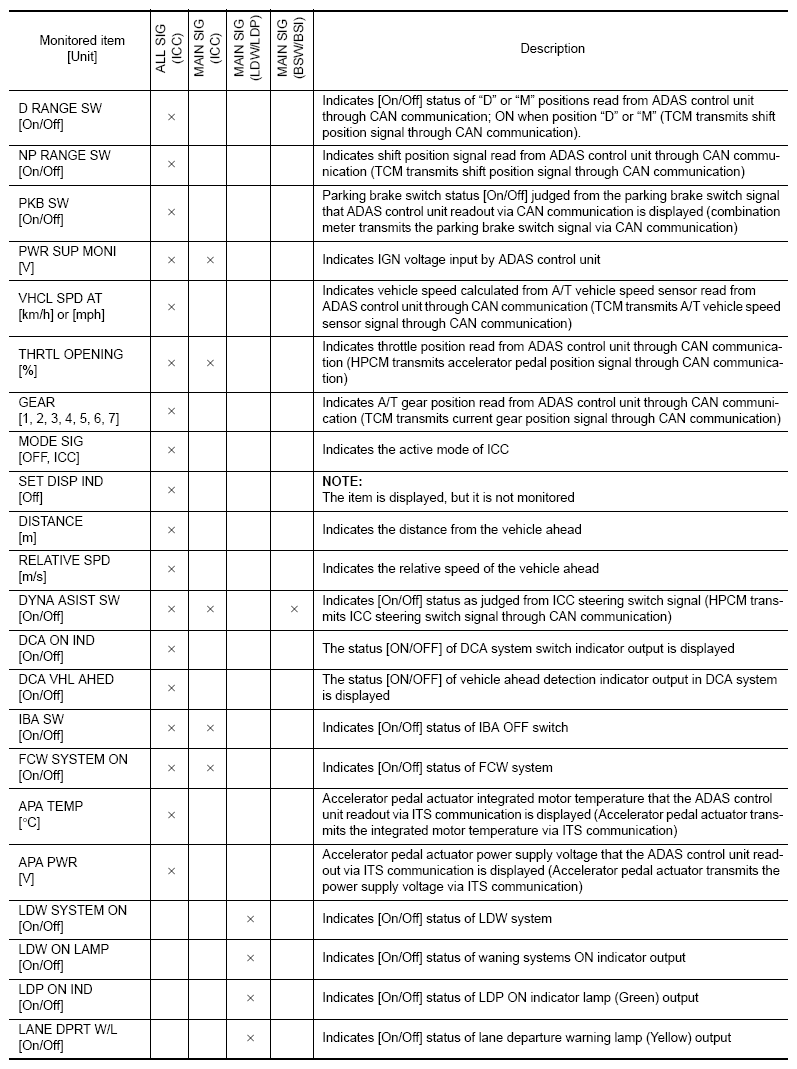

Fig 1: Self Diagnostic Result Data Monitor Chart (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

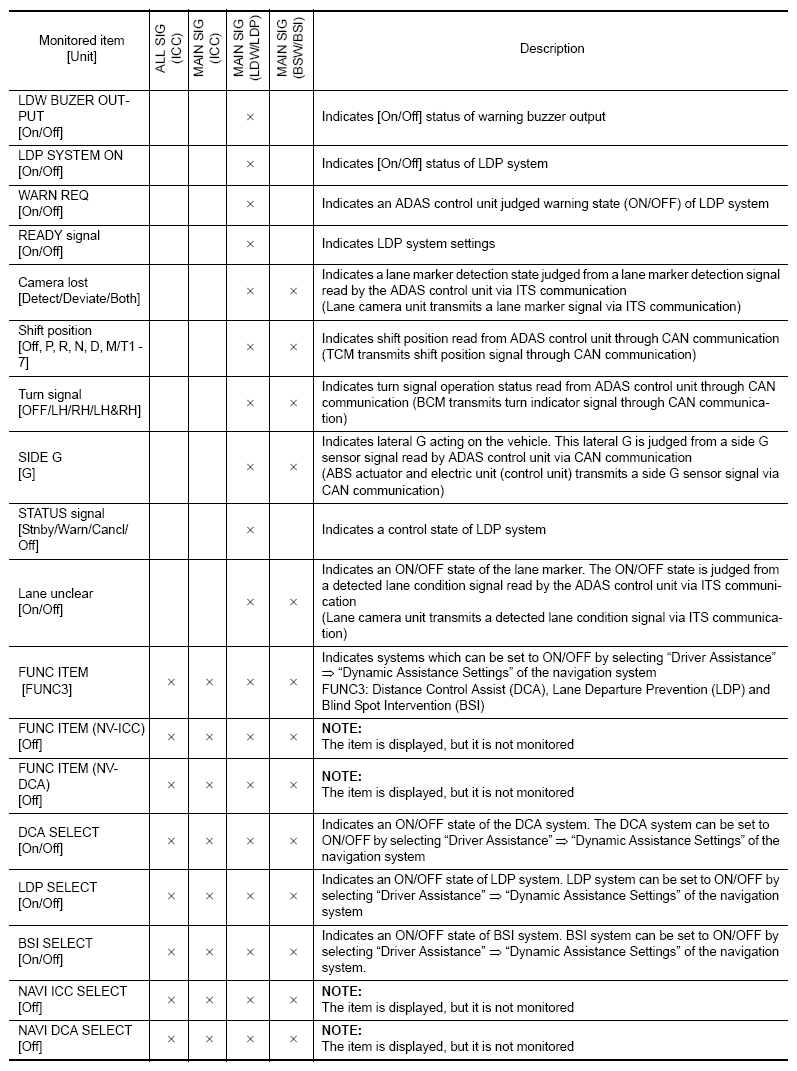

Fig 2: Self Diagnostic Result Data Monitor Chart (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

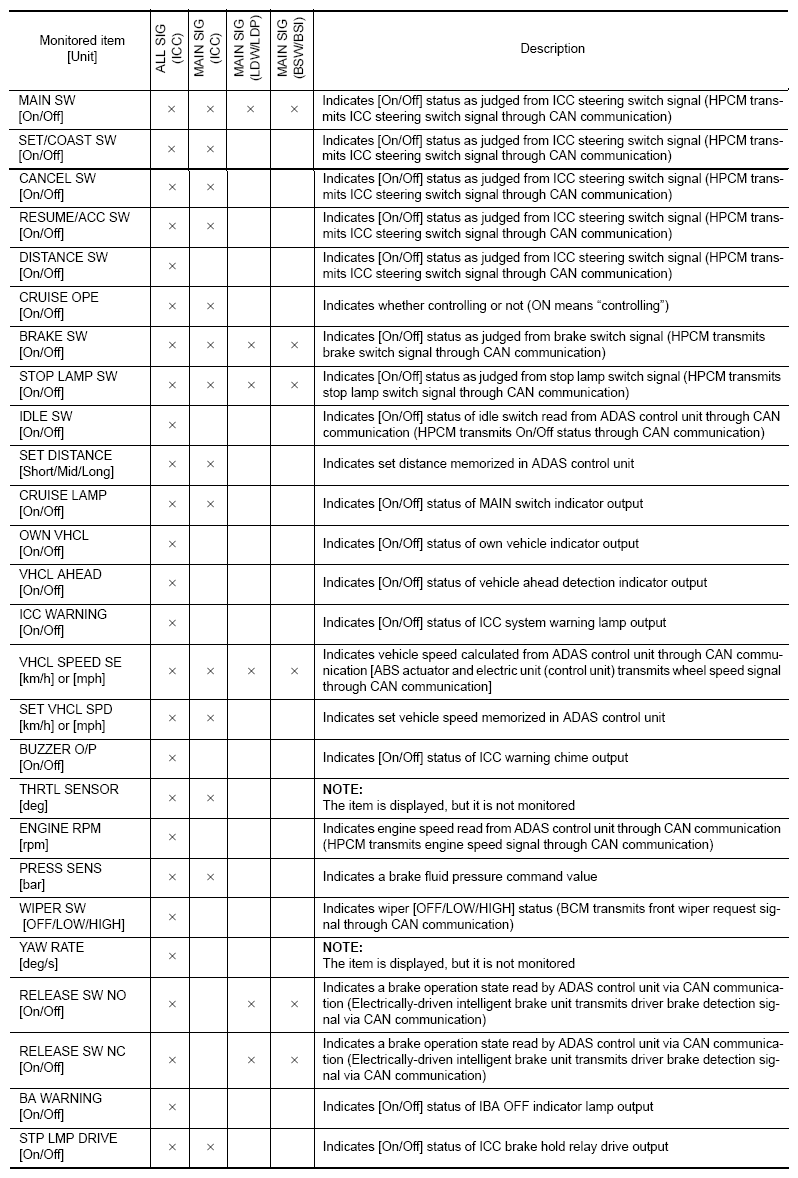

Fig 3: Self Diagnostic Result Data Monitor Chart (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

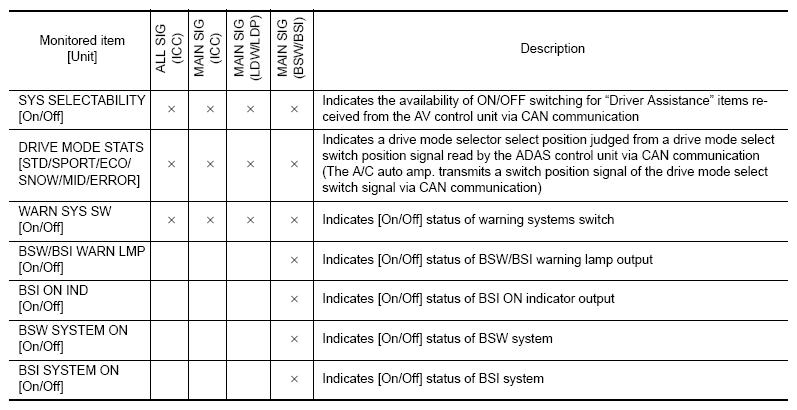

Fig 4: Self Diagnostic Result Data Monitor Chart (4 Of 4)
