Hybrid Battery System
›
System Description
›
System
›
Circuit Diagram
›
Notes
Circuit Diagram: Notes

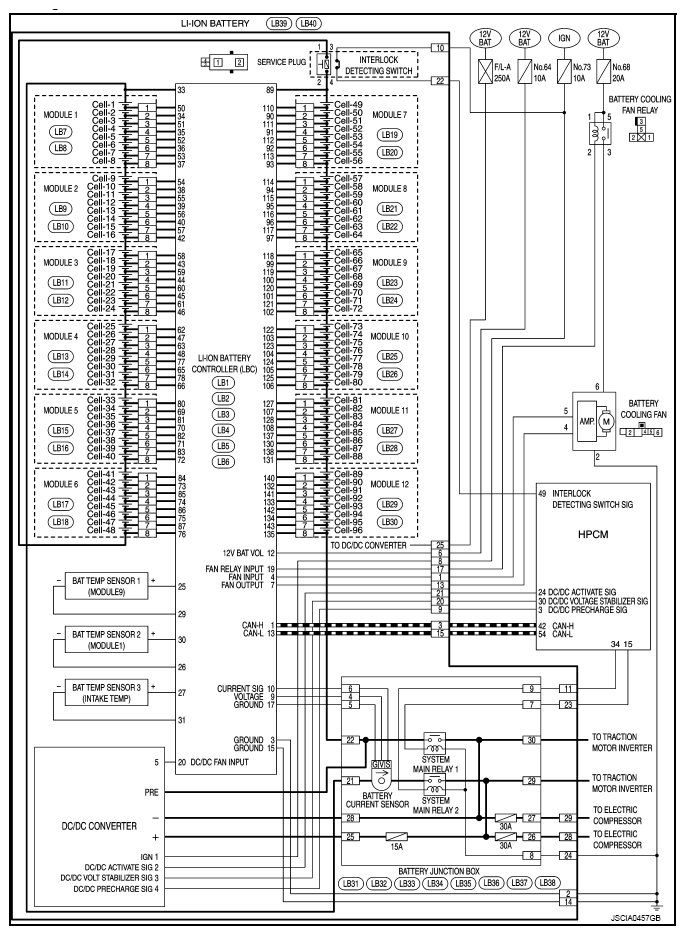

Fig 1: Li-ion Battery Controller Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.

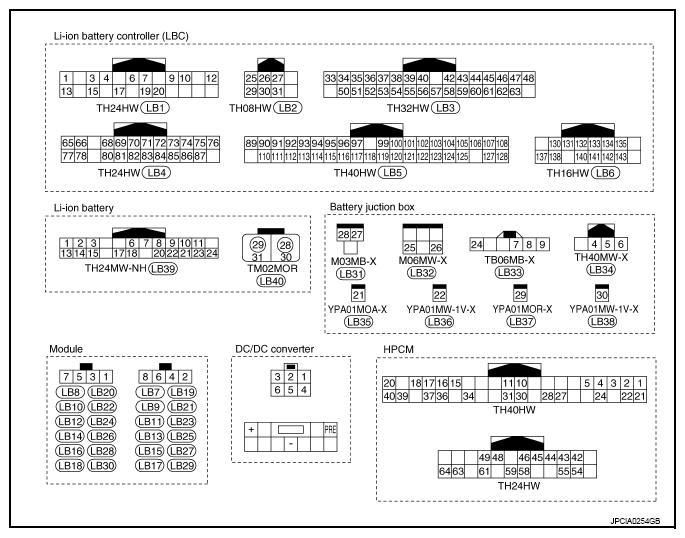

Fig 2: Li-ion Battery Controller Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
