Infiniti
›
2013
›
M35h
›
Repair and Diagnosis
›
Hybrid/Electric Powertrain
›
Battery Management Systems
›
Hybrid Battery System
›
Unit Disassembly And Assembly
›
Li-Ion Battery
›
Exploded View
Exploded View

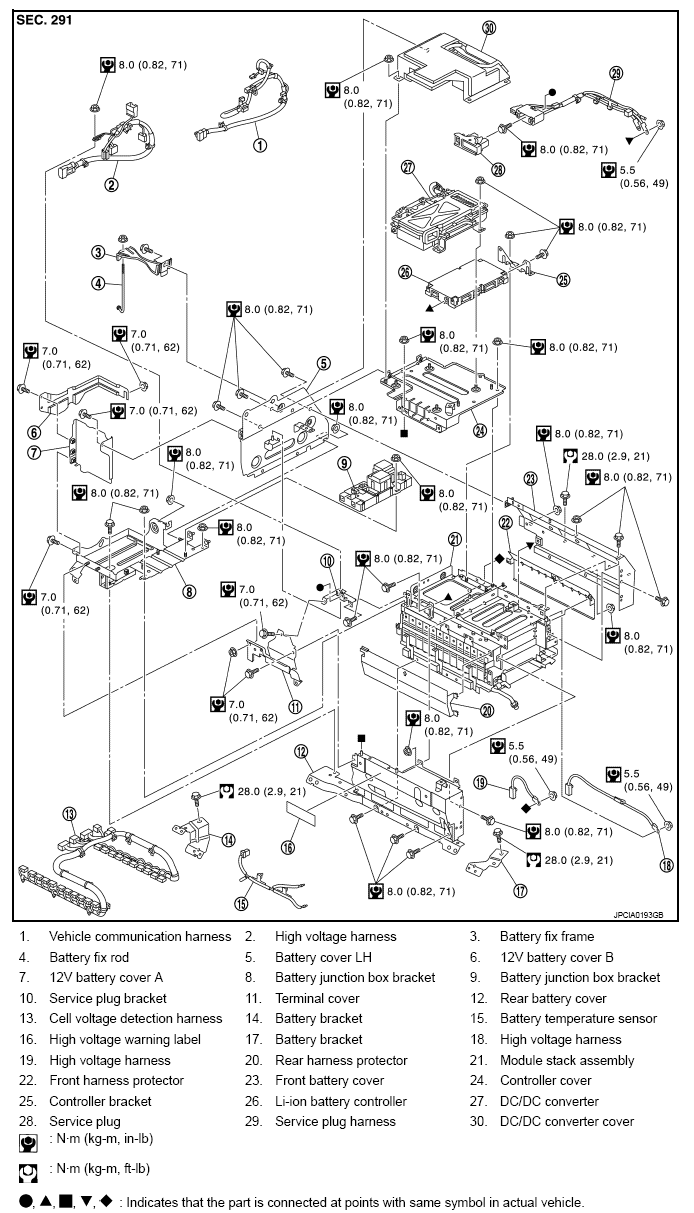

Fig 1: Exploded View Of Li-ion Battery With Torque Specifications (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

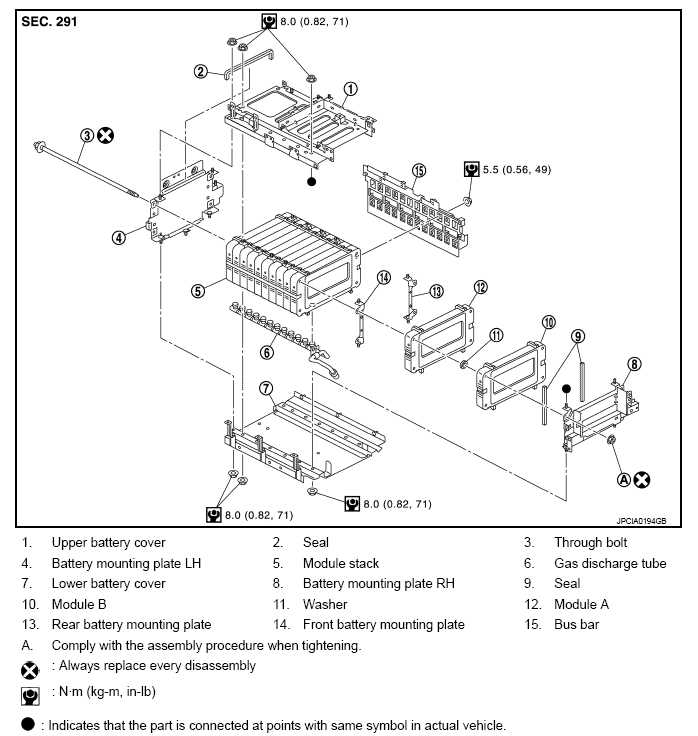

Fig 2: Exploded View Of Li-ion Battery With Torque Specifications (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

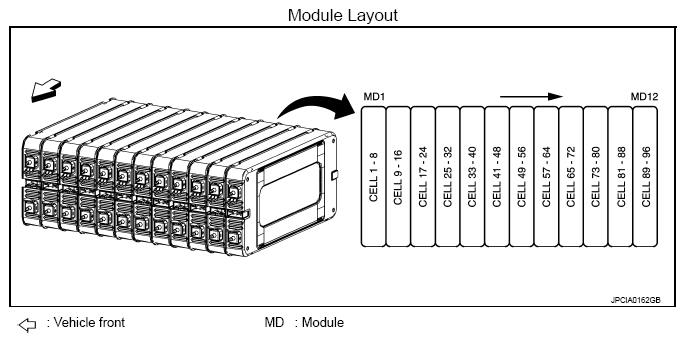

Fig 3: Li-ion Battery Module Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
