HYBRID EPS SYSTEM: System Description
›
System Diagram
System Diagram

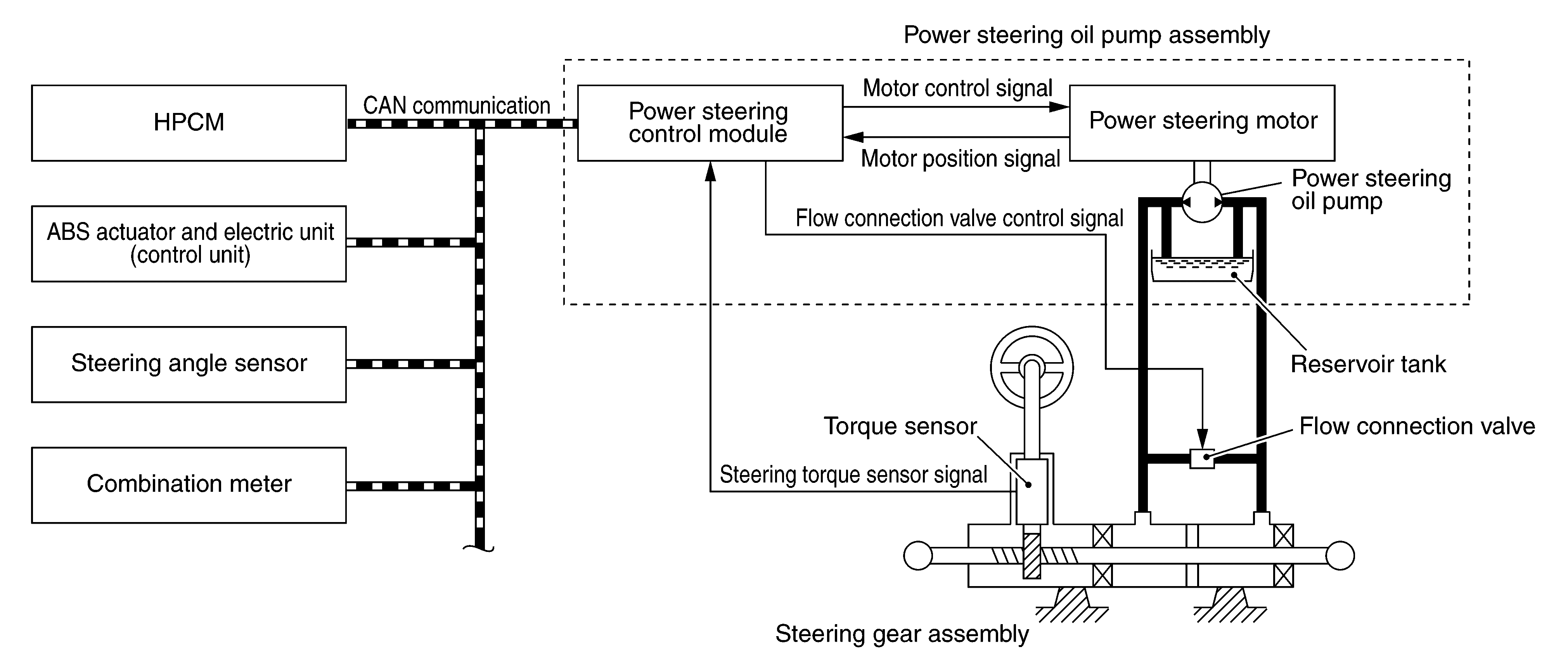

Fig 1: Hybrid EPS System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
