Front Coil Spring And Shock Absorber
›
Exploded View
Exploded View

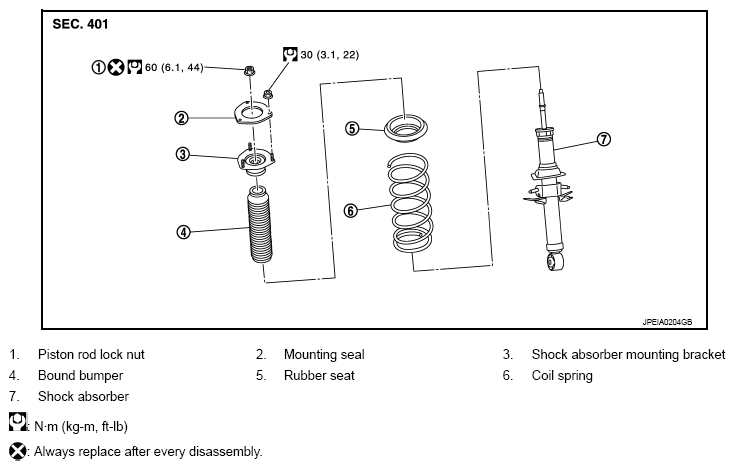

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
