A/T Shift Selector
›
Exploded View
Exploded View

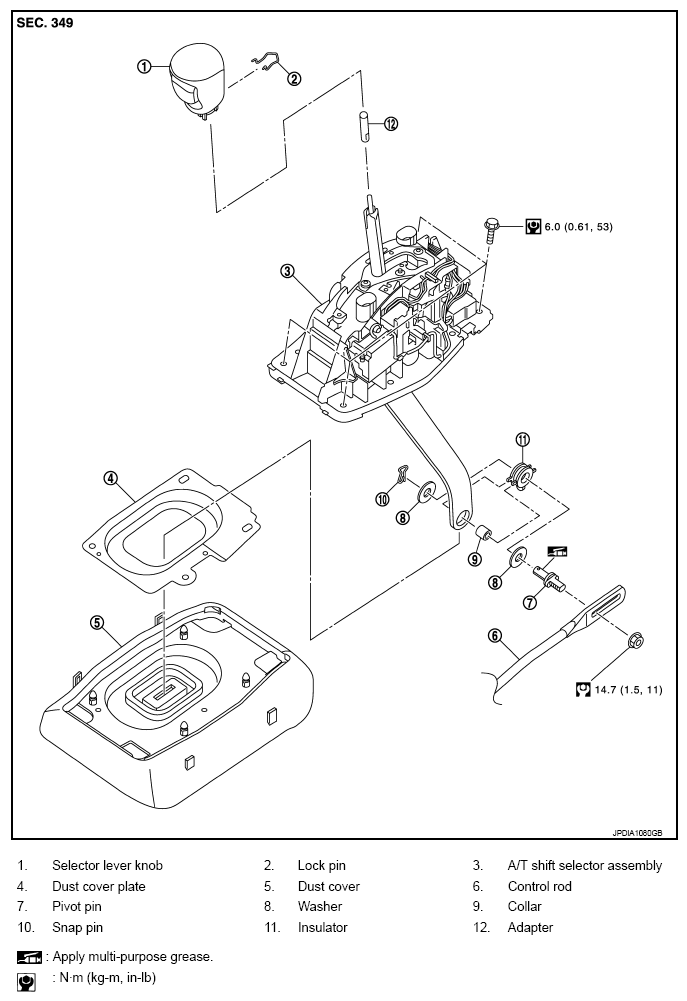

Fig 1: Exploded View Of A/T Shift Selector
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
