Infiniti
›
2013
›
M35h
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
Removal And Installation
›
Control Rod
›
Exploded View
Exploded View

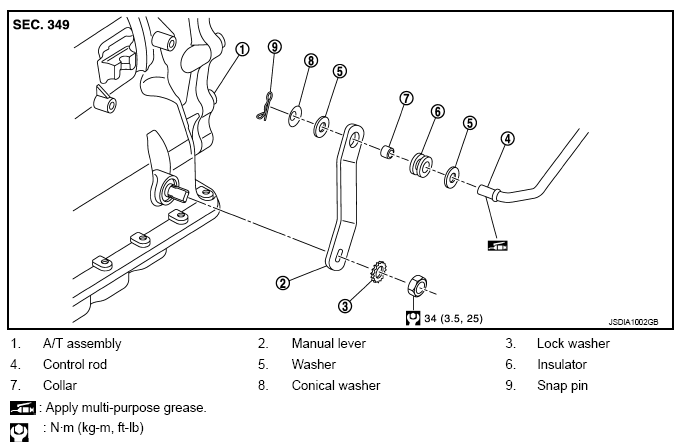

Fig 1: Exploded View Of Control Rod With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
