A/T SHIFT LOCK SYSTEM: System Description
›
Shift Lock Mechanism
Shift Lock Mechanism

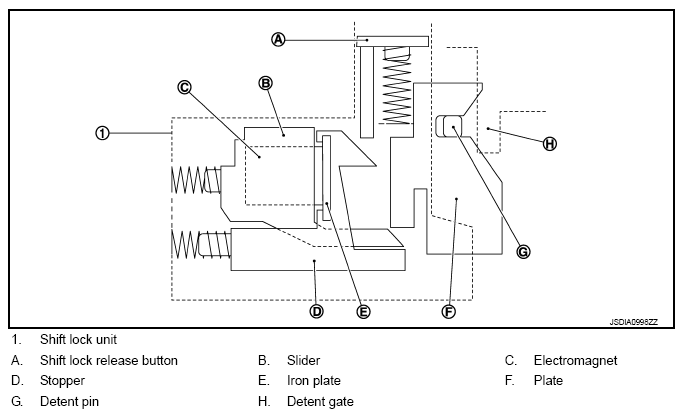

Fig 1: A/T Shift Lock Mechanism Cross-Section
Courtesy of NISSAN NORTH AMERICA, INC.
