System Description
›
System
›
Intelligent Key System/Engine Start Function
›
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Diagram
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Diagram

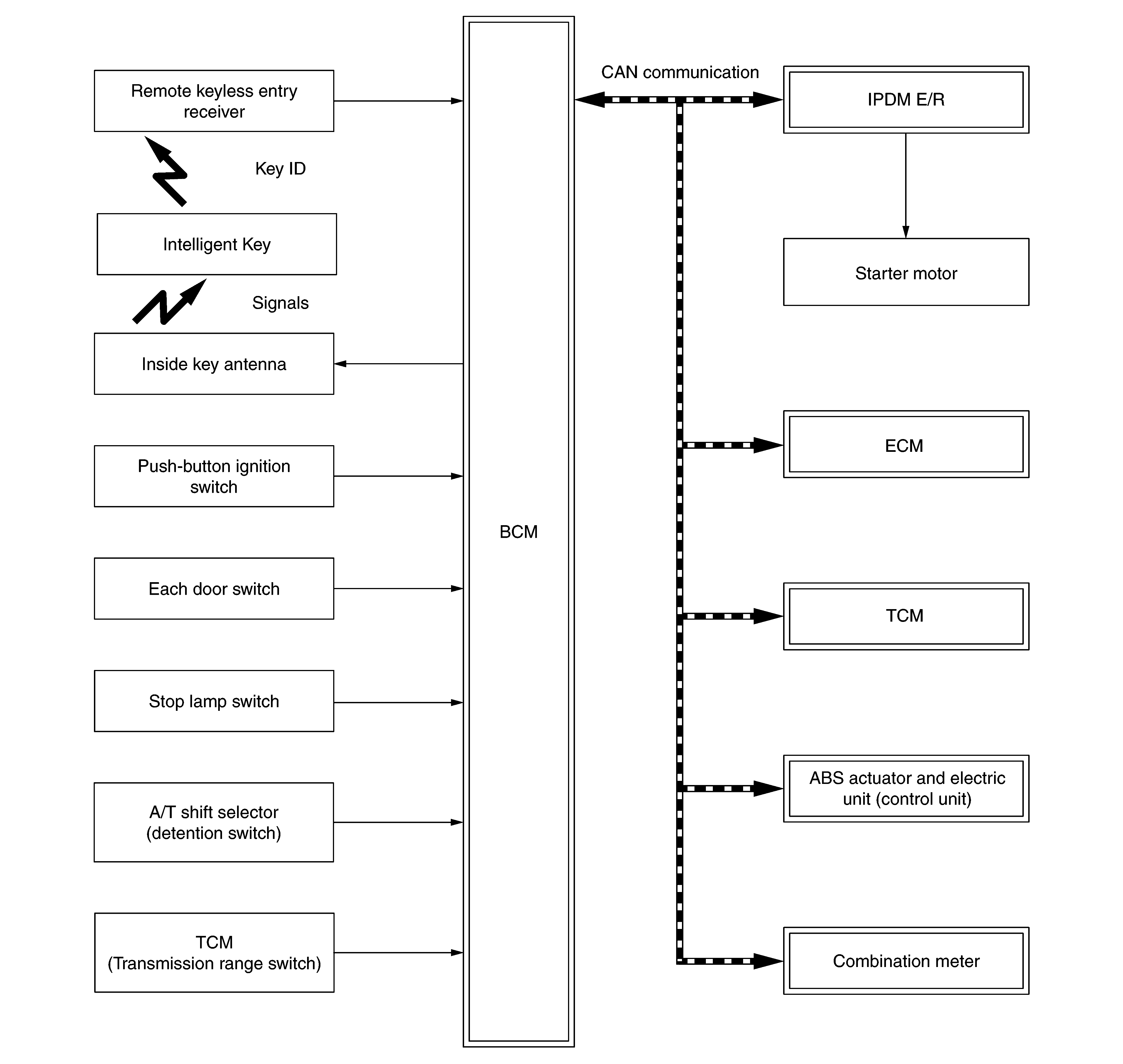

Fig 1: Intelligent Key System/Engine Start Function System Diagram
