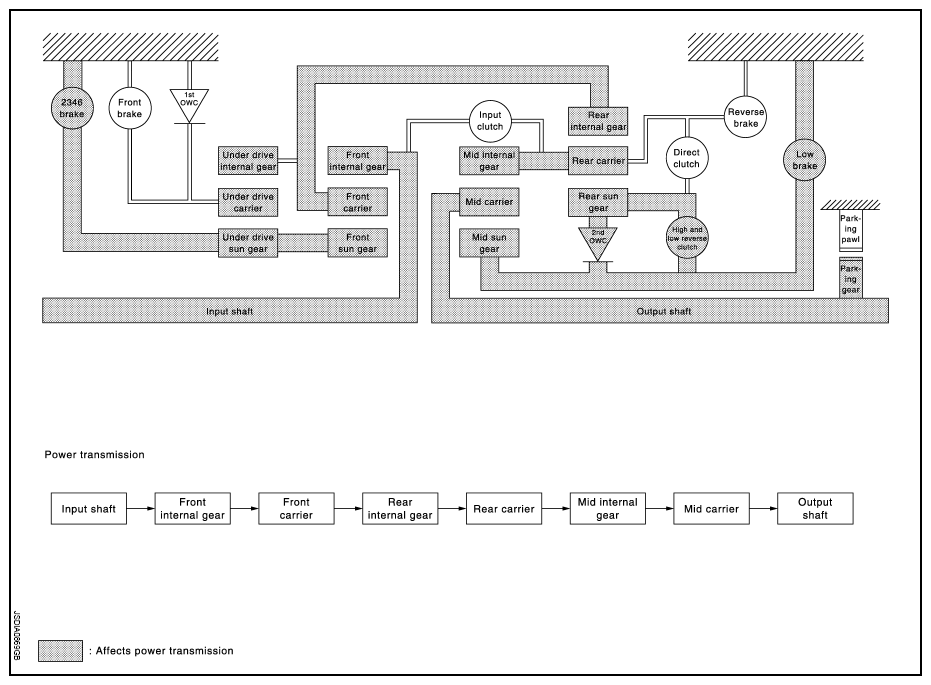

"M2" Position
- The front sun gear and the under drive sun gear are fixed by the 2346 brake.
- The 2nd one-way clutch and the high and low reverse clutch regulate counterclockwise rotation of the rear sun gear.NOTE: The high and low reverse clutch operates only while coasting.
- The mid sun gear is fixed by the low brake.
- Each planetary gear enters the state described below.
FRONT PLANETARY GEAR
| Name | Front sun gear | Front carrier | Front internal gear |
|---|---|---|---|
| Condition | Fixed | Output | Input |
| Direction of rotation | - | Clockwise revolution | Clockwise revolution |
| Number of revolutions | - | Deceleration from front internal gear | Same number of revolution as the input shaft |
UNDER DRIVE PLANETARY GEAR
| Name | Under drive sun gear | Under drive carrier | Under drive internal gear |
|---|---|---|---|
| Condition | Fixed | - | Input/Output |
| Direction of rotation | - | Clockwise revolution | Clockwise revolution |
| Number of revolutions | - | Deceleration from under drive internal gear | Same number of revolution as the front carrier |
REAR PLANETARY GEAR
| Name | Rear sun gear | Rear carrier | Rear internal gear |
|---|---|---|---|
| Condition | Fixed | Output | Input |
| Direction of rotation | - | Clockwise revolution | Clockwise revolution |
| Number of revolutions | - | Deceleration from rear internal gear | Same number of revolution as the under drive internal gear |
MID PLANETARY GEAR
| Name | Mid sun gear | Mid carrier | Mid internal gear |
|---|---|---|---|
| Condition | Fixed | Output | Input |
| Direction of rotation | - | Clockwise revolution | Clockwise revolution |
| Number of revolutions | - | Deceleration from mid internal gear | Same number of revolution as the rear carrier |
