Under Drive Carrier, Front Brake Hub: Disassembly

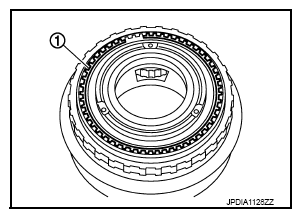

- Remove snap ring (1) from front brake hub using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch front brake hub and under drive carrier assembly.
- Be careful not to damage snap ring.
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove under drive carrier assembly (1) from front brake hub.
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove snap ring (1) from front brake hub using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch front brake hub.
- Be careful not to damage snap ring.
Courtesy of NISSAN NORTH AMERICA, INC.
