Brake Control System (With VDC)
›
System Description
›
System
›
System Description
›
System Diagram
System Diagram

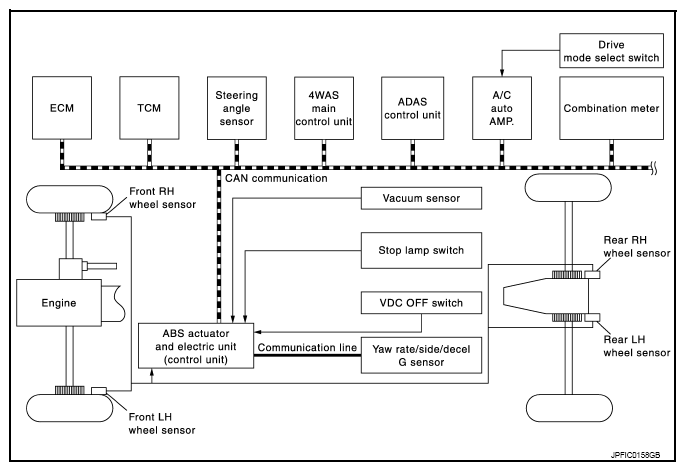

Fig 1: Brake Control System Diagram
