When New Cylinder Block Is Used

Check the cylinder bore grade ("1", "2" or "3") on rear side of cylinder block, and select piston of the same grade.

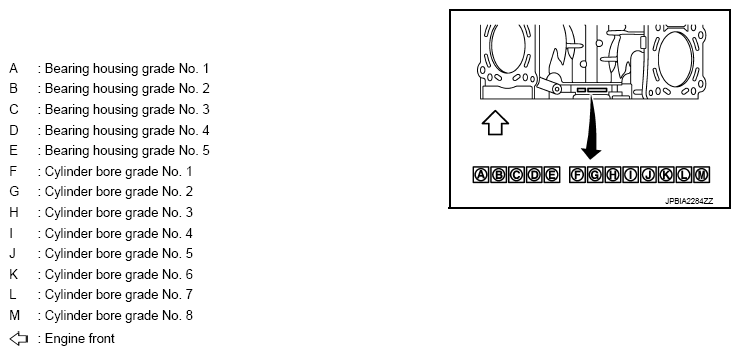

Fig 1: Identifying Bearing Housing Grade And Cylinder Bore Grade No. On Cylinder Block

Courtesy of NISSAN NORTH AMERICA, INC.
