Overall Sequence

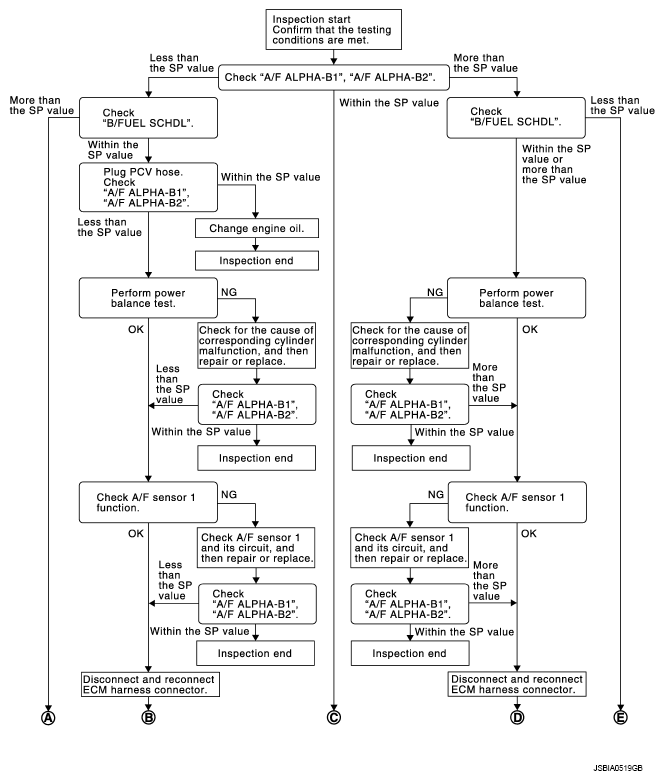

Fig 1: Trouble Diagnosis Procedure Work Flow Chart (1 Of 2)
G08897132Courtesy of NISSAN NORTH AMERICA, INC.

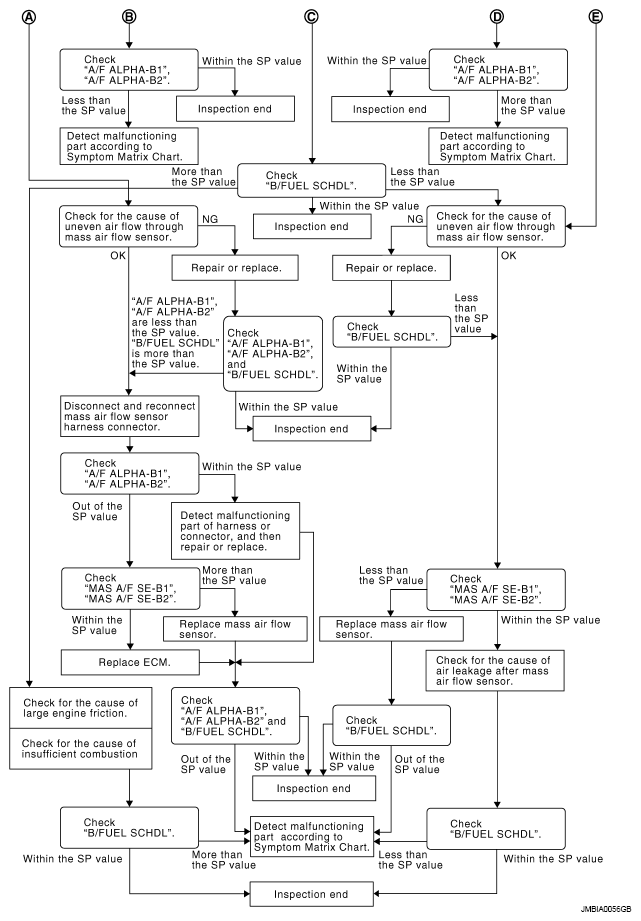

Fig 2: Trouble Diagnosis Procedure Work Flow Chart (2 Of 2)
G08897133Courtesy of NISSAN NORTH AMERICA, INC.
