System - Basic Engine Control System

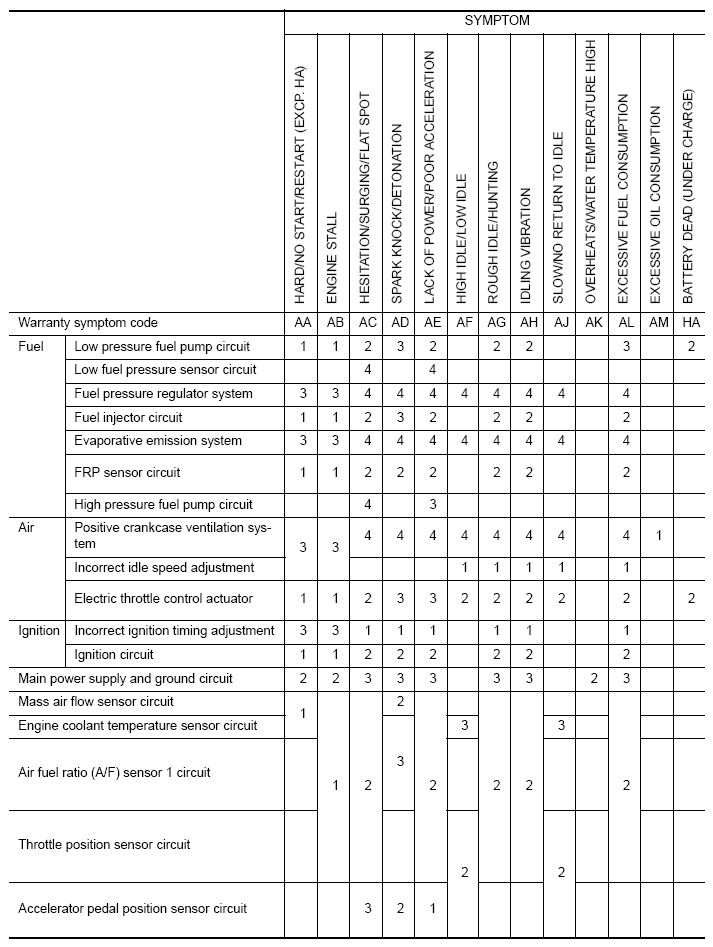

Fig 1: Engine Control System Symptoms Chart (Basic) (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

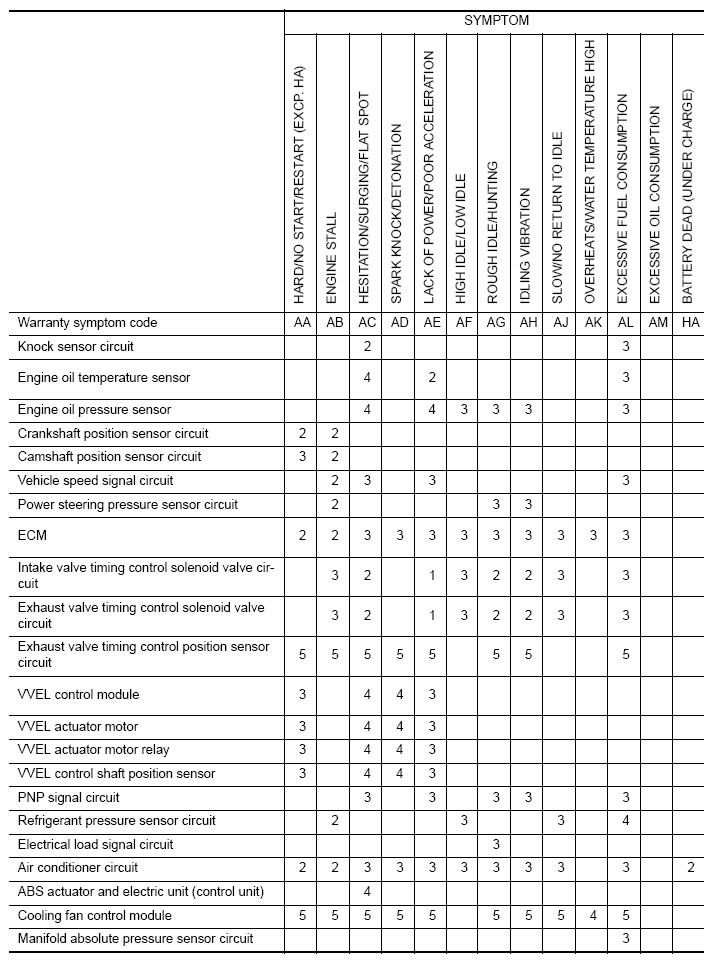

Fig 2: Engine Control System Symptoms Chart (Basic) (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

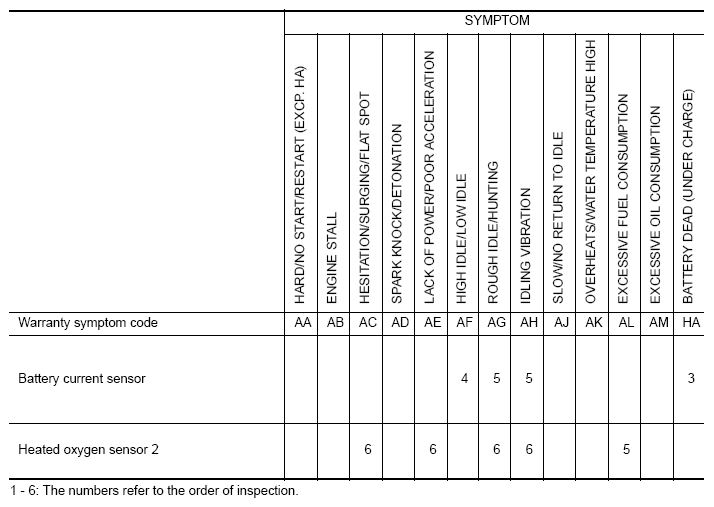

Fig 3: Engine Control System Symptoms Chart (Basic) (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
