Engine Control System (Introduction)
›
System Description
›
System
›
Evaporative Emission System
›

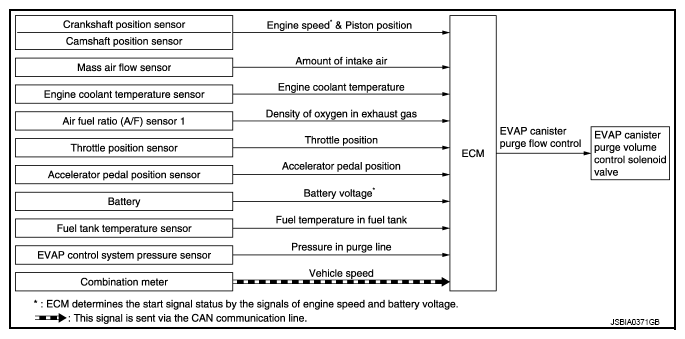

EVAPORATIVE EMISSION SYSTEM: System Diagram
EVAPORATIVE EMISSION SYSTEM: System Diagram
Fig 1: Evaporative Emission System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
