NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to
CONSULT display items.

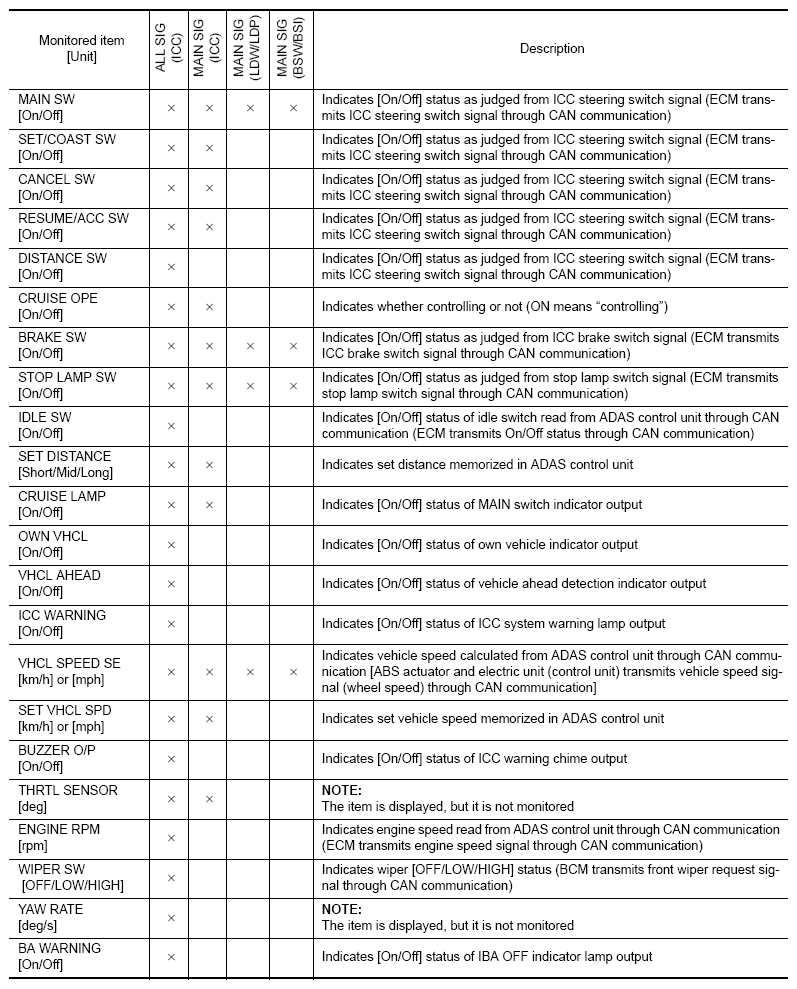

Fig 1: ADAS Control Unit Data Monitored Items Chart (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

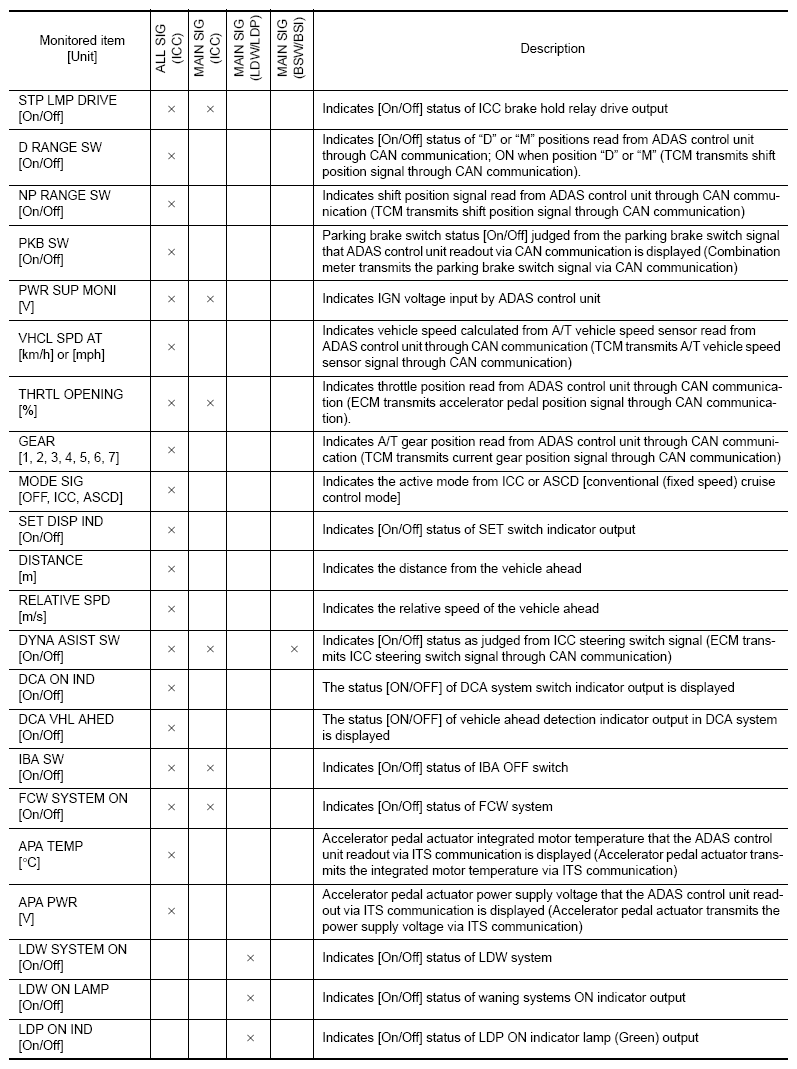

Fig 2: ADAS Control Unit Data Monitored Items Chart (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

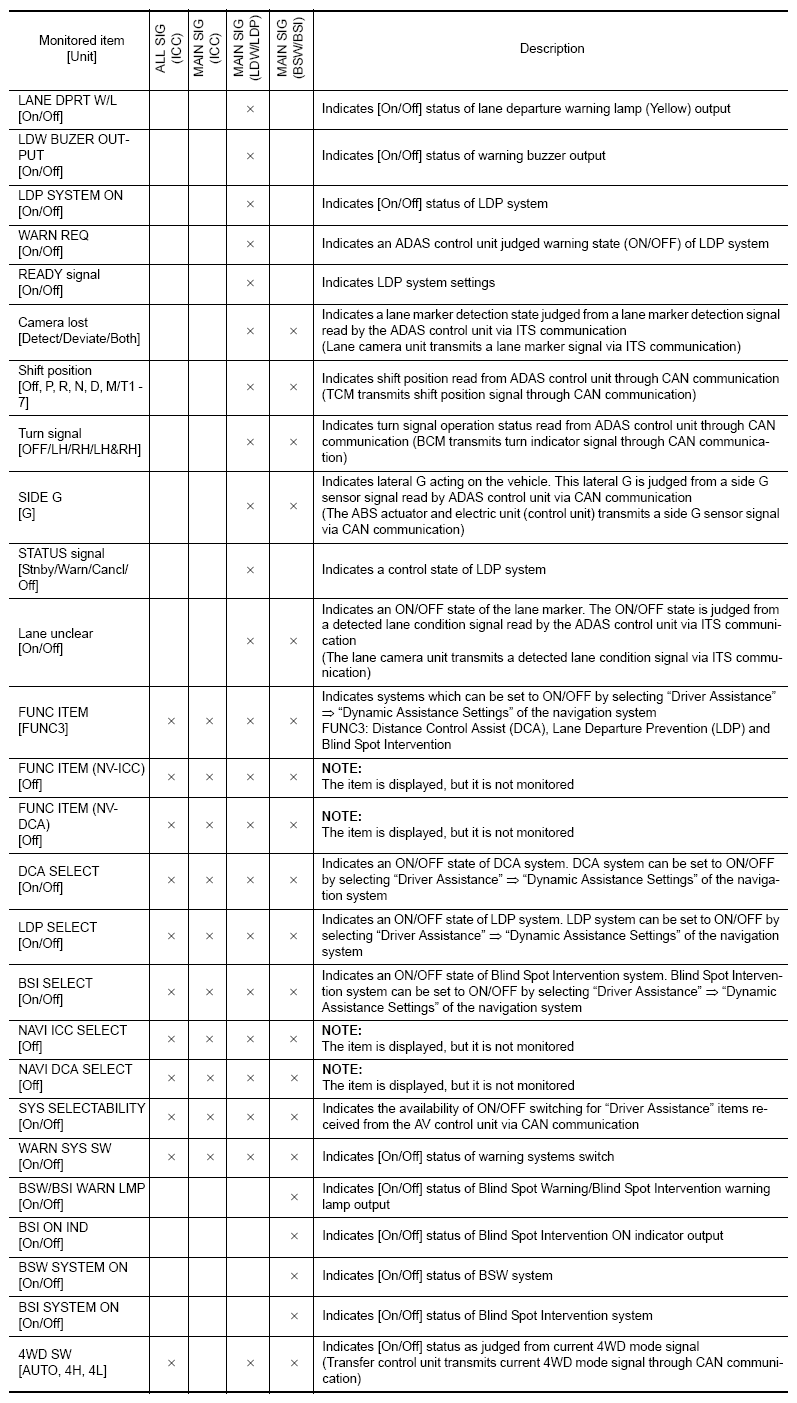

Fig 3: ADAS Control Unit Data Monitored Items Chart (3 Of 3)
