Brake Control System (With VDC)
›
System Description
›
System
›
VDC Function
›
VDC FUNCTION: System Description
›
System Diagram
System Diagram
NOTE:
Transfer control unit is applied to models with 4WD system.

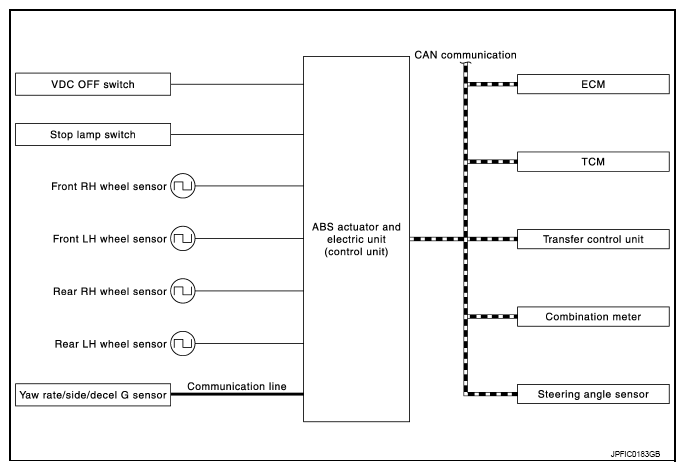

Fig 1: VDC System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
