Engine Control System - Introduction
›
System Description
›
System
›
Air Conditioning Cut Control
›
AIR CONDITIONING CUT CONTROL: System Diagram
AIR CONDITIONING CUT CONTROL: System Diagram

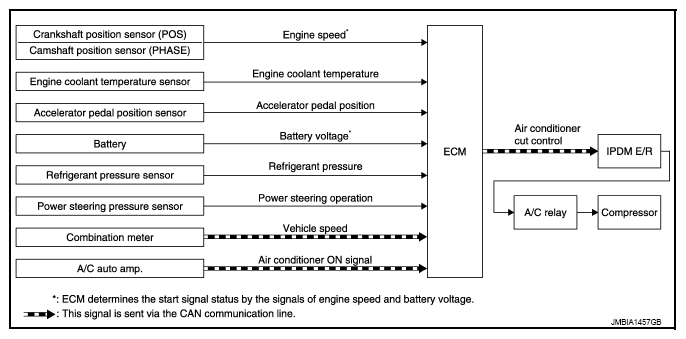

Fig 1: Air Conditioning Cut Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
