Valve Lift Operation

Rotational movement of the drive shaft equipped with eccentric cam is transmitted to output cam via the rocker arm and two kinds of links to depress the intake valve.

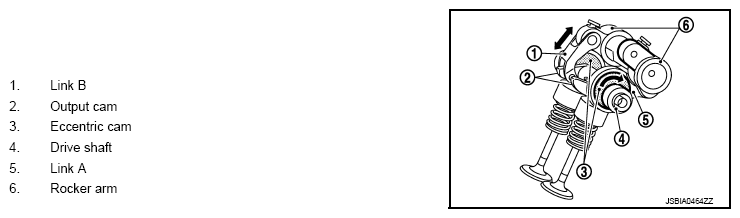

Fig 1: VVEL System Operation Diagram (Valve Lift Operation)
G08850973Courtesy of NISSAN NORTH AMERICA, INC.
