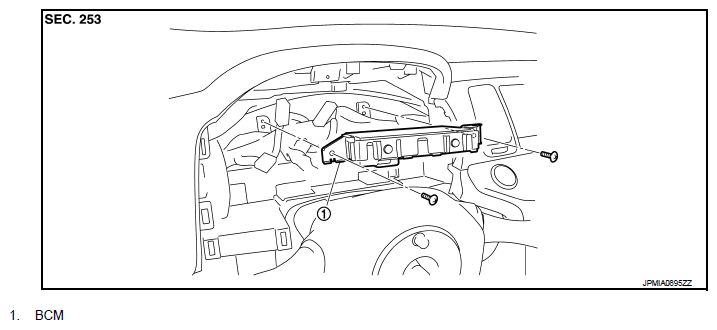

Exploded View
WARNING: This page is about a different car, the 2013 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to
"ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM): DESCRIPTION ".
