How To Use This Information: Components: Notes

• THE LARGE ILLUSTRATIONS  are exploded views (see the following) and contain tightening torques, lubrication points, section number of the PARTS CATALOG  (e.g. SEC. 440) and other information necessary to perform repairs.

  The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG  .

  Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.

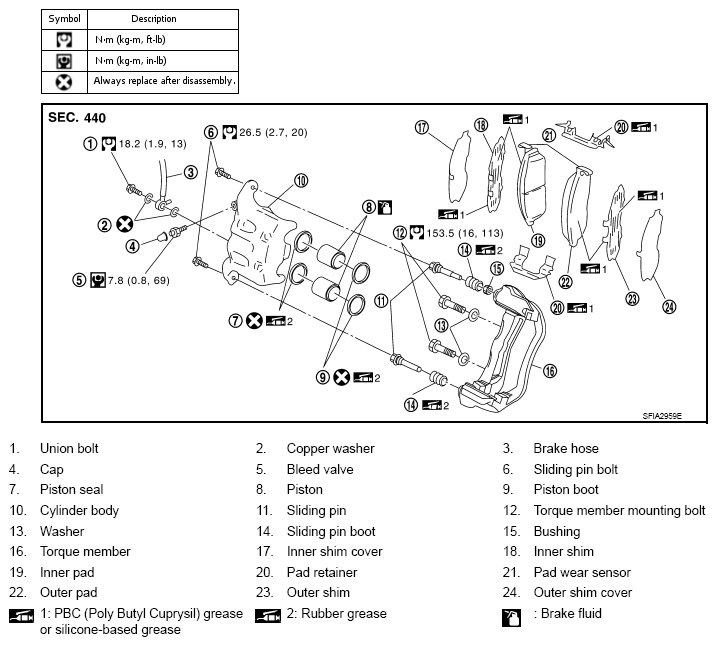

Fig 1: Brake Caliper And Related Replacement Components With Torque Specifications (Example)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to the information below for additional symbol definitions.
