System Symptom
›
Symptom Table
›
Symptom Table 1
Symptom Table 1

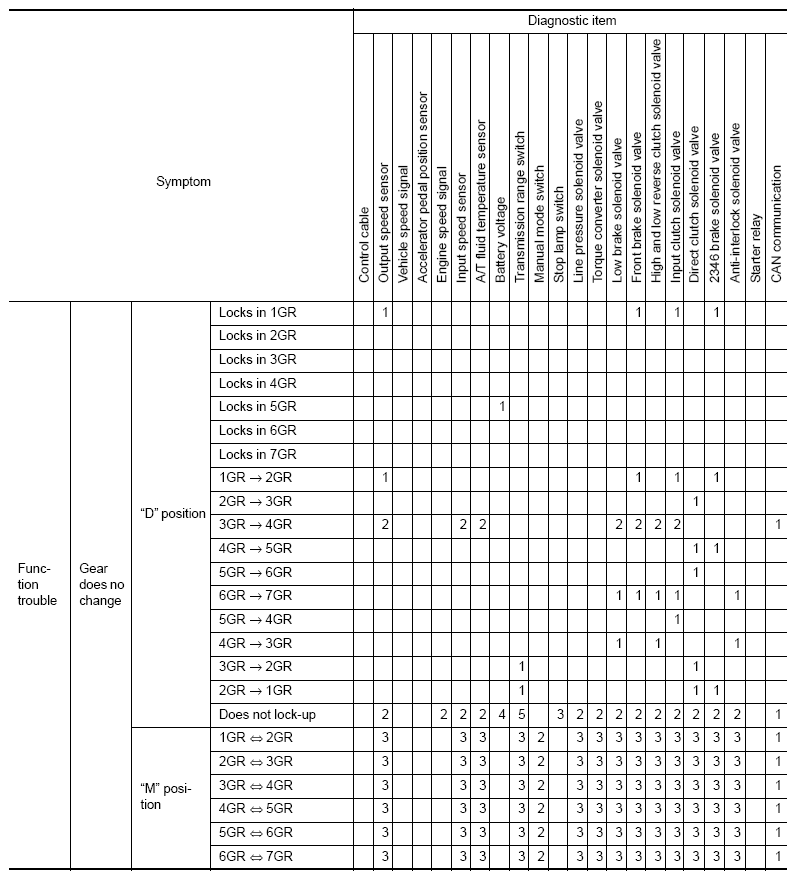

Fig 1: Diagnostic Item Symptom Chart 1 (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

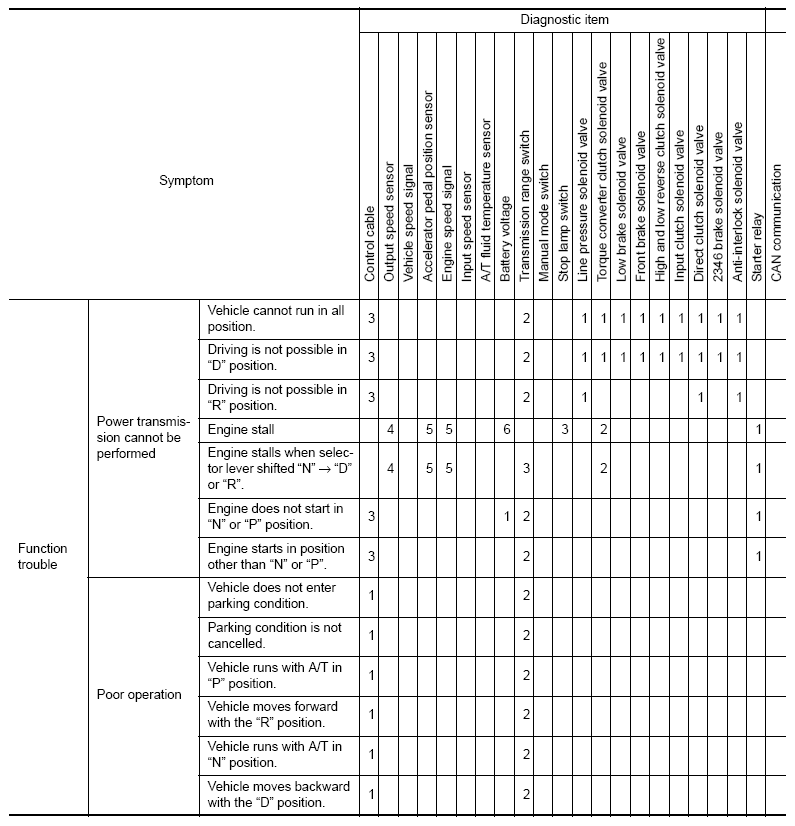

Fig 2: Diagnostic Item Symptom Chart 1 (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

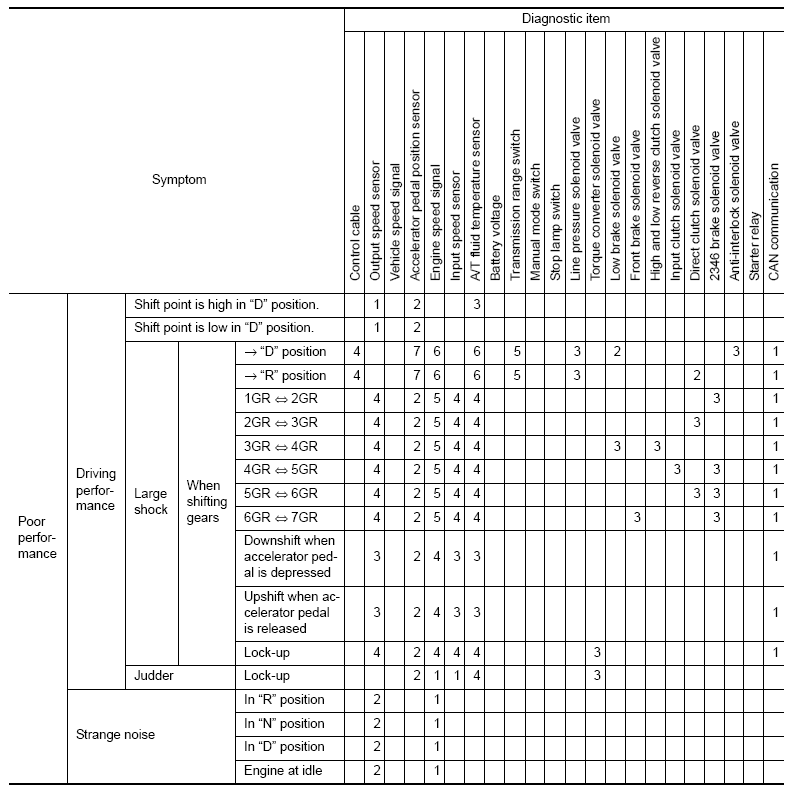

Fig 3: Diagnostic Item Symptom Chart 1 (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

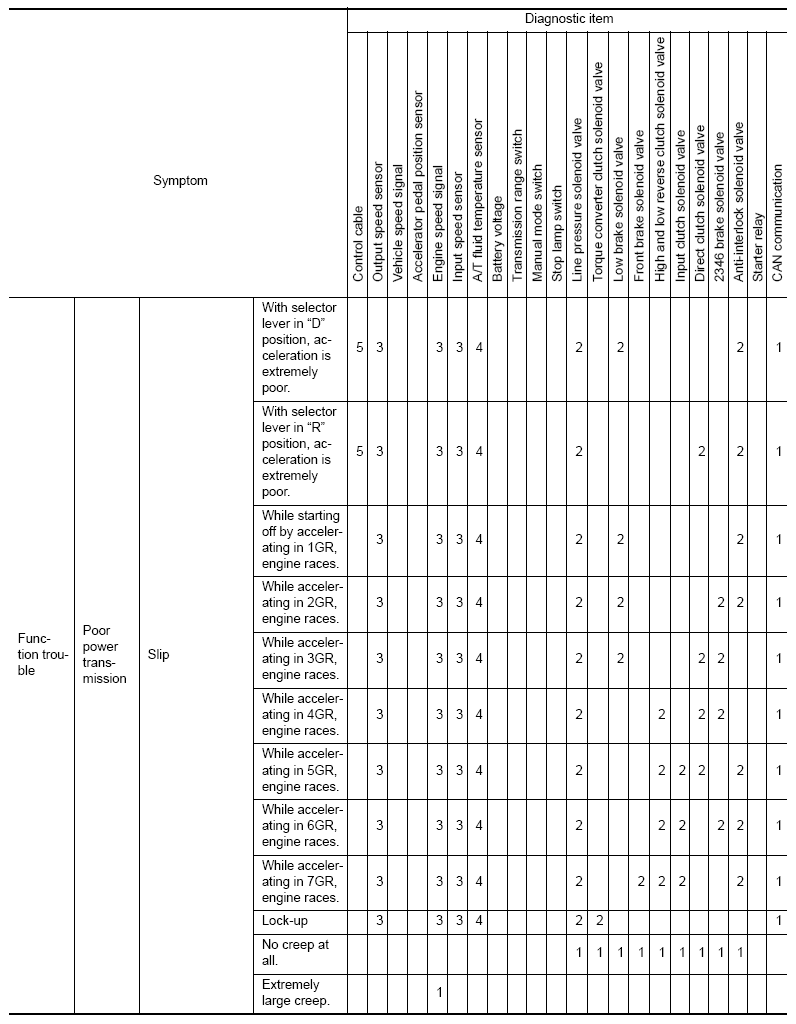

Fig 4: Diagnostic Item Symptom Chart 1 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

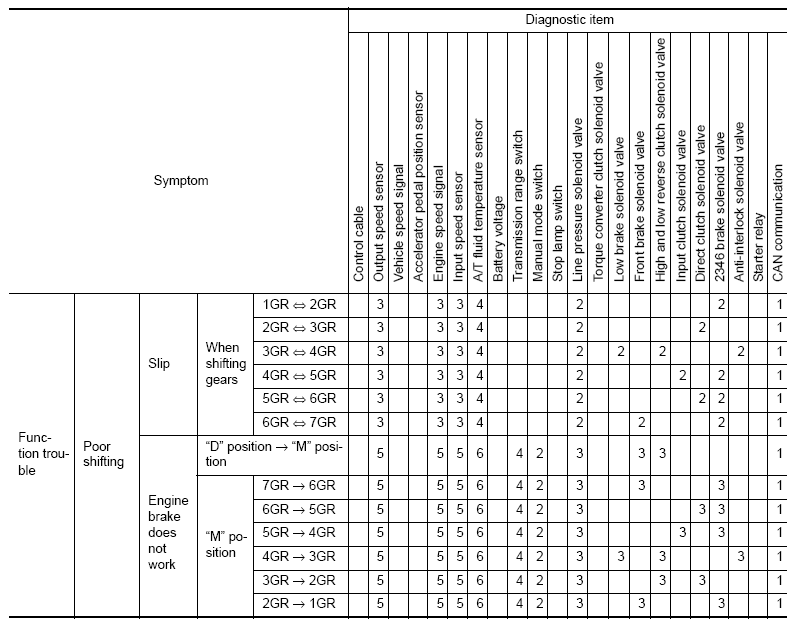

Fig 5: Diagnostic Item Symptom Chart 1 (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
