Repair and Diagnosis
›
Transmission
›
Transfer Case
›
System Description
›
System
›
4WD System
›
4WD SYSTEM: System Description
›
System Diagram
System Diagram

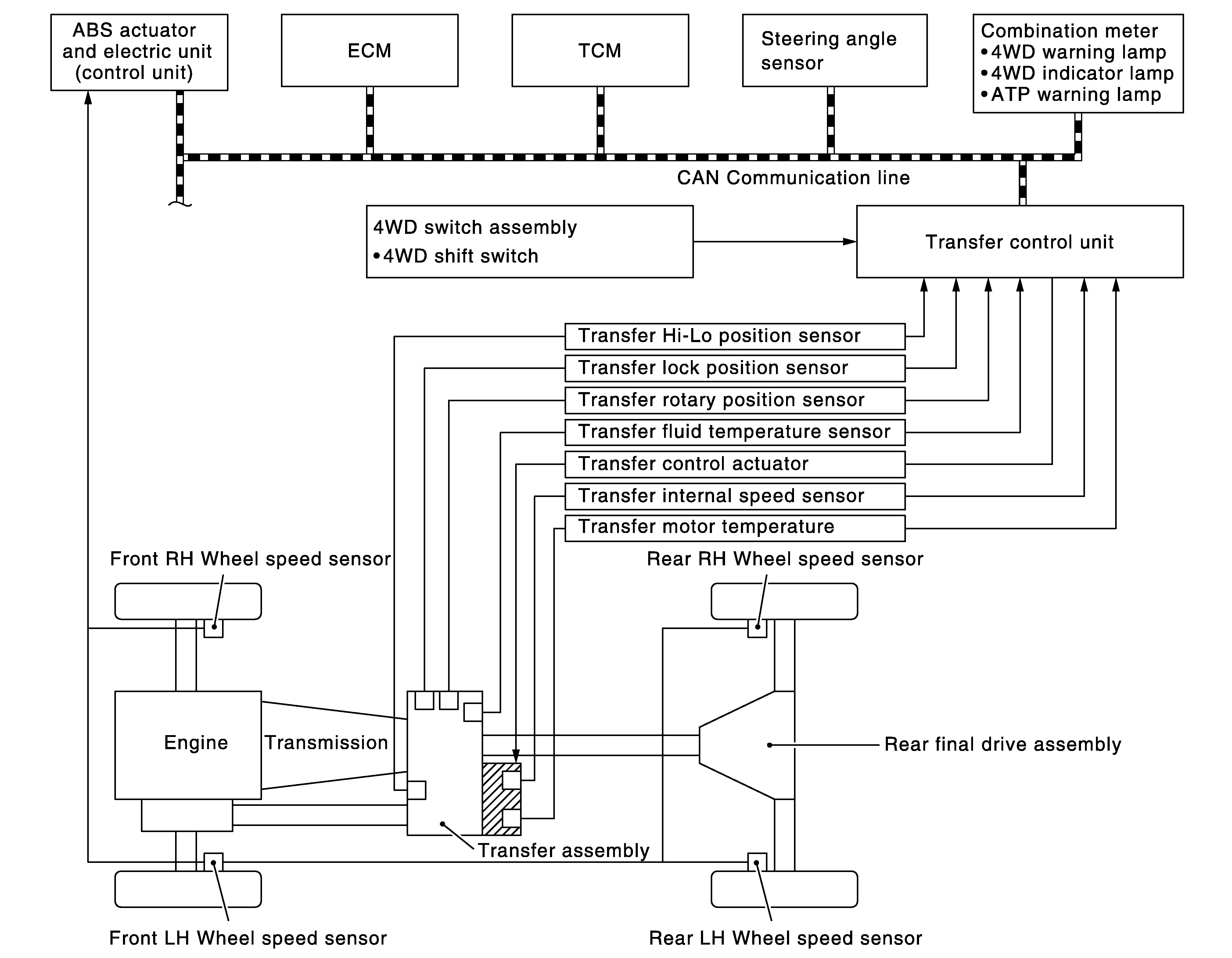

Fig 1: 4WD System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
