Infiniti
›
2013
›
QX56 RWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Window System
›
Removal And Installation
›
Back Door Window Glass
›
Exploded View
Exploded View

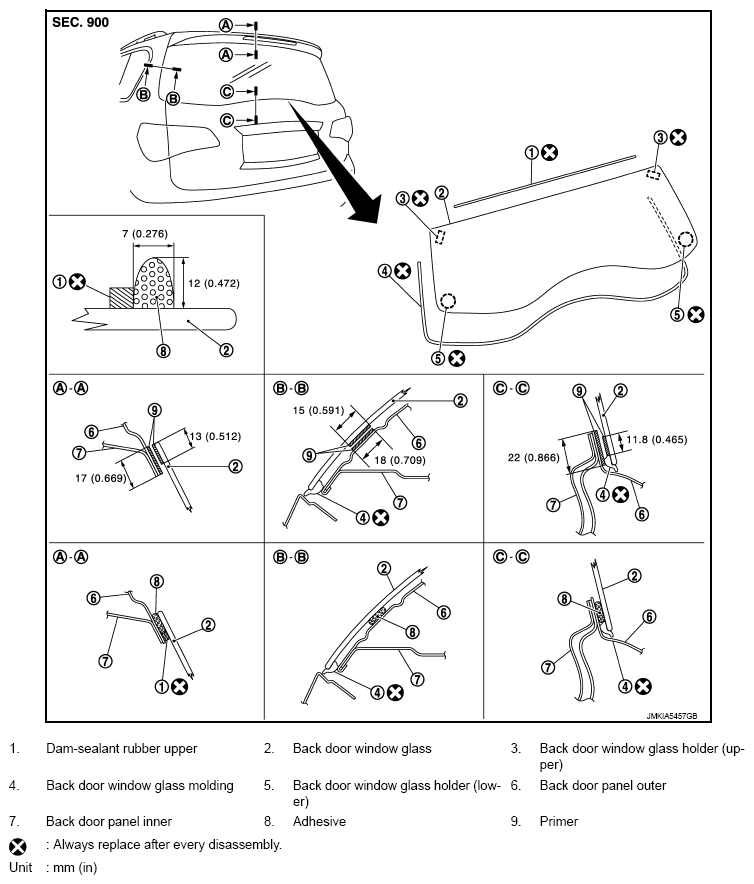

Fig 1: Exploded View Of Back Door Window Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
