Removal and Installation: Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Note the following, and install in the reverse order of removal.

When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque.

Bolt symbol	A	B
Insertion direction	Transfer to transmission	Transmission to transfer

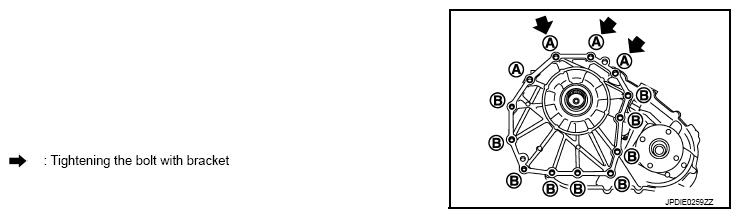

Fig 1: Locating Transfer To Transmission Mounting Bolts

Courtesy of NISSAN NORTH AMERICA, INC.

When installing transfer breather hose assembly, check that there are no bend and twist on the transfer breather hose.

Align paint marks (A) to connect breather hoses (1), (2), and (3) with breather connectors (4) in numerical order.
Align arrow mark (B) of breather (5) with mark "C" of breather hose.

Fig 2: Identifying Breather Hoses To Breather Connectors Aligning Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
Install hose clip (1) to the position where the distance from the breather side hose end is dimension "D." Install hose clip (2), (3), and (4) to the positions where the distance from breather hose joint (C) is dimension "E," "F," and "G," respectively, as shown in the figure below.

Fig 3: Identifying Hose Clip Installation Position
Courtesy of NISSAN NORTH AMERICA, INC.

Dimension

D: 26.3 mm (1.035 in)

E: 121.7 mm (4.791 in)

F: 25.0 mm (0.984 in)

G: 143.0 mm (5.630 in)

CAUTION:

To install hose clips (1), (2), (3), and (4), observe the angle/orientation shown in the figure below.
Angle A: 45° ± 15°

Fig 4: Identifying Hose Clips Installation Angle/Orientation
Courtesy of NISSAN NORTH AMERICA, INC.
Never reuse hose clip
After tightening band of clip, cut the extra part.
