Under Drive Carrier, Front Brake Hub
›
Exploded View
Exploded View

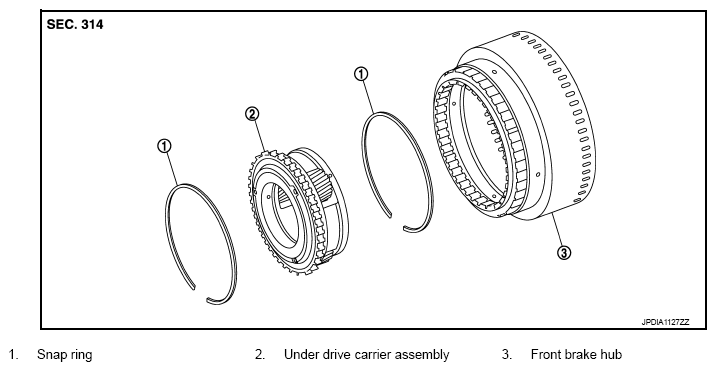

Fig 1: Exploded View Of Under Drive Carrier And Front Brake Hub
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
