Accessories & Equipment
›
Drivers Assistance Systems - ADAS
›
Driver Assistance System (Chassis Control) (Except Hybrid)
›
Removal And Installation
›
Chassis Control Module
›
Exploded View
Exploded View

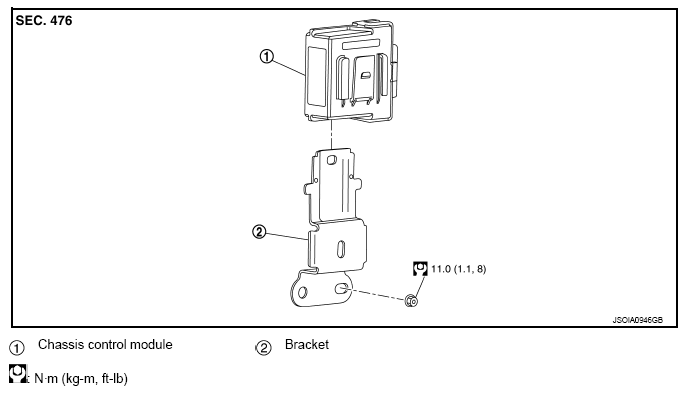

Fig 1: Exploded View Of Chassis Control Module With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
