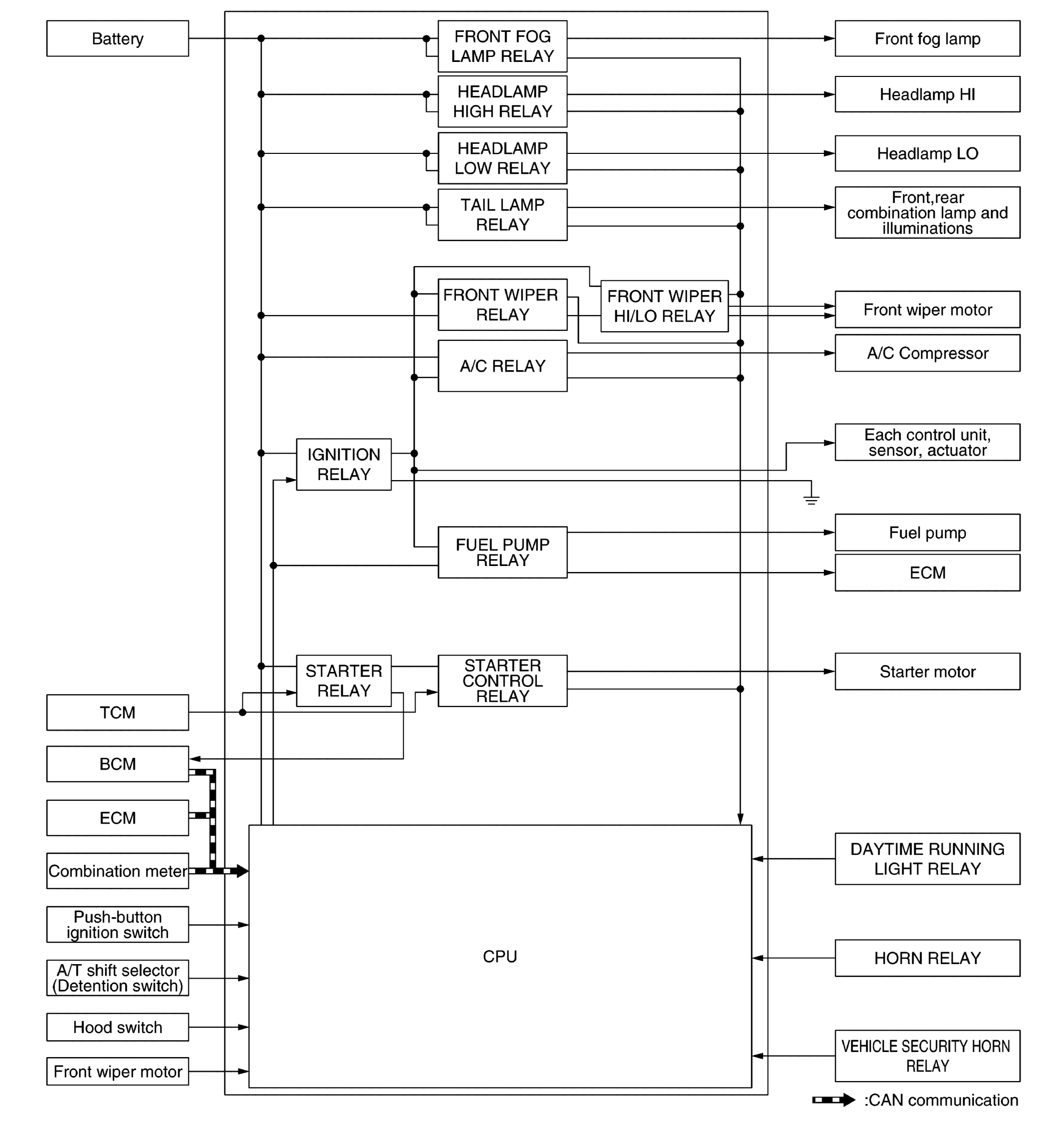

Home › Infiniti › 2014 › Q50 Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › Power Control System (IPDM/Er) (Except Hybrid) › System Description › System › Relay Control System › RELAY CONTROL SYSTEM: System Description › System Diagram
