Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System (Except Hybrid)
›
Removal And Installation
›
Fuel Tank
›
Exploded View
Exploded View

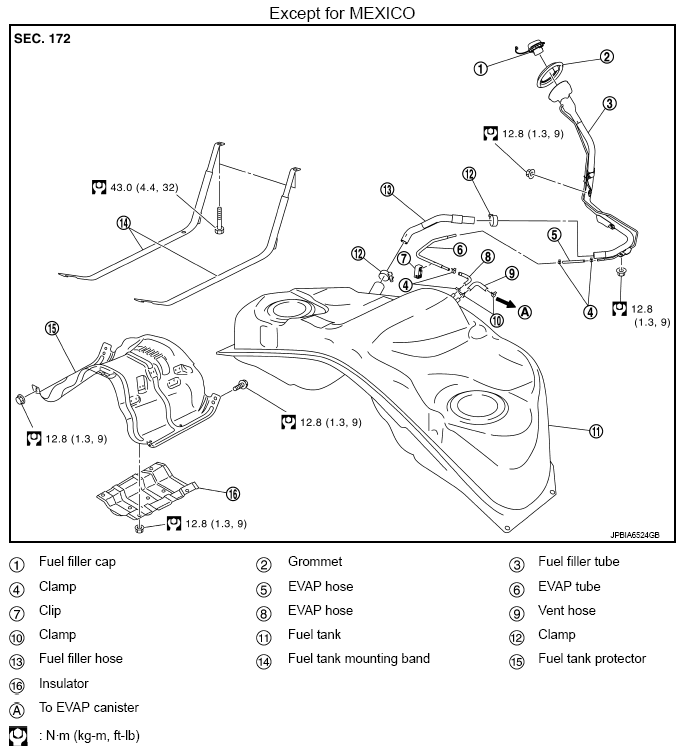

Fig 1: Exploded View Of Fuel Tank (Except For Mexico)
Courtesy of NISSAN NORTH AMERICA, INC.

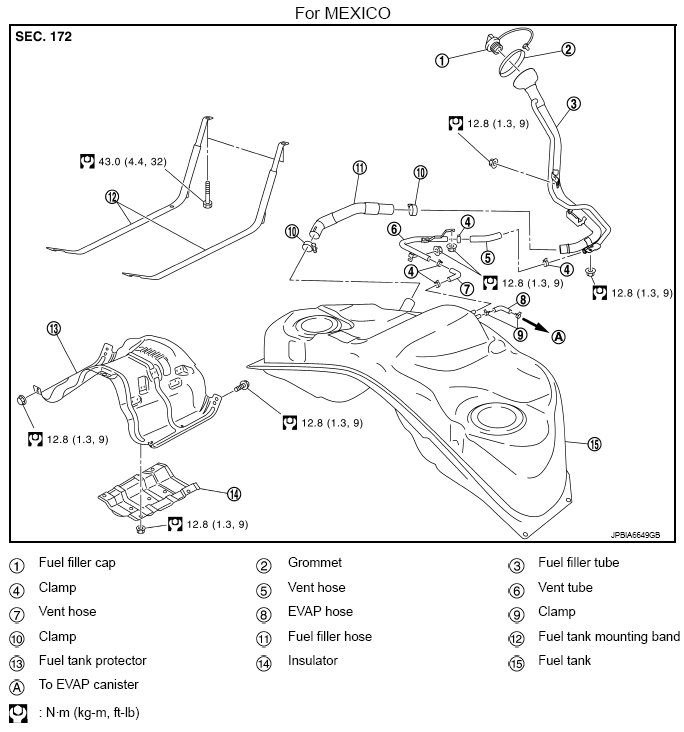

Fig 2: Exploded View Of Fuel Tank (For Mexico)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
