Engine Control System (Introduction) (Except Hybrid)
›
System Description
›
System
›
Fuel Pump Control Module (FPCM)
›
FUEL PUMP CONTROL MODULE (FPCM): System Description
›
System Diagram
System Diagram

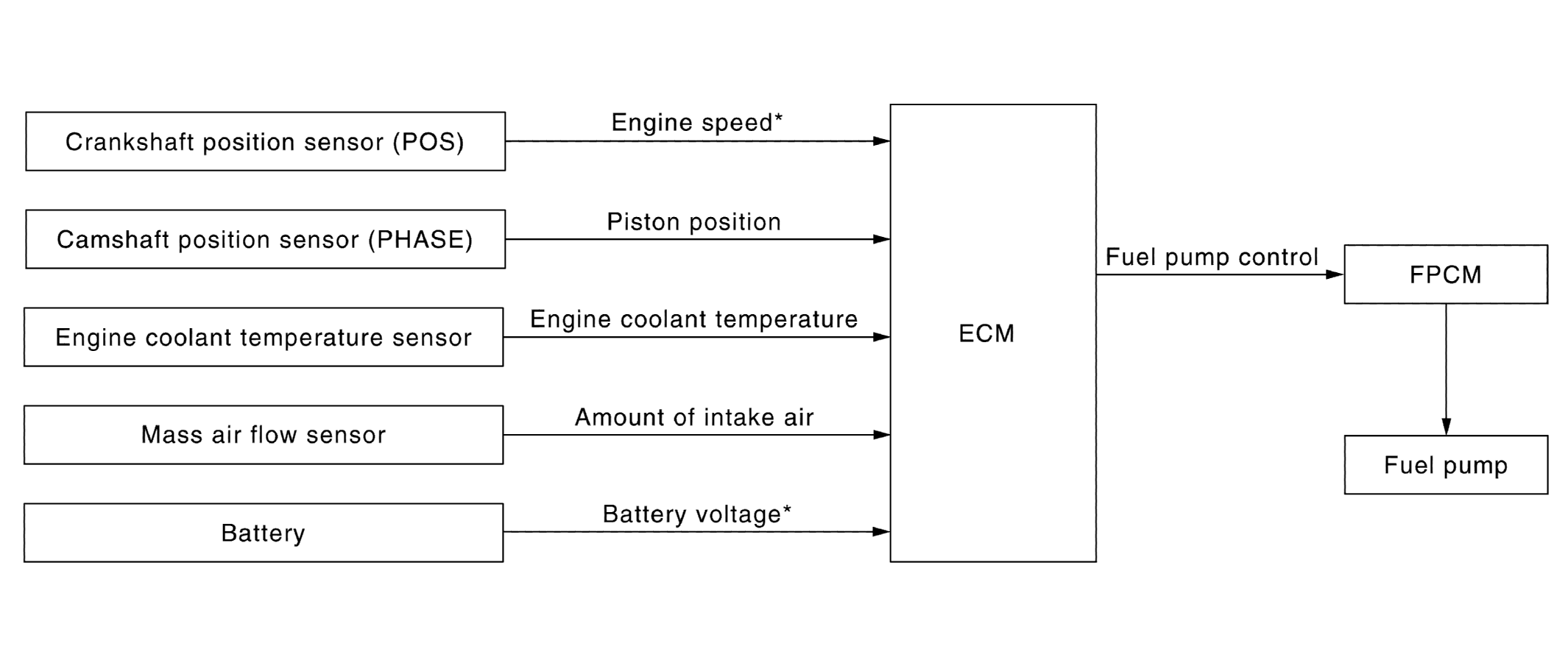

Fig 1: Fuel Pump Control Module (FPCM) System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
