Engine Control System (Introduction) (Except Hybrid)
›
System Description
›
System
›
Cooling Fan Control
›
COOLING FAN CONTROL: System Description
›
System Diagram
System Diagram

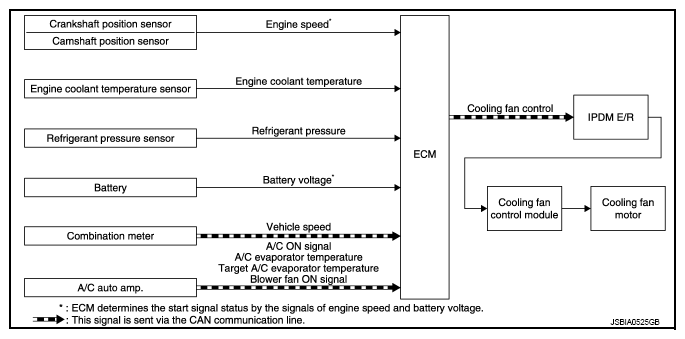

Fig 1: Cooling Fan Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
