FixVault
Home
›
Infiniti
›
2014
›
Q60 Base, 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Security Control System (Convertible)
›
System Description
›
Vehicle Security System
›
Component Parts Location
Component Parts Location

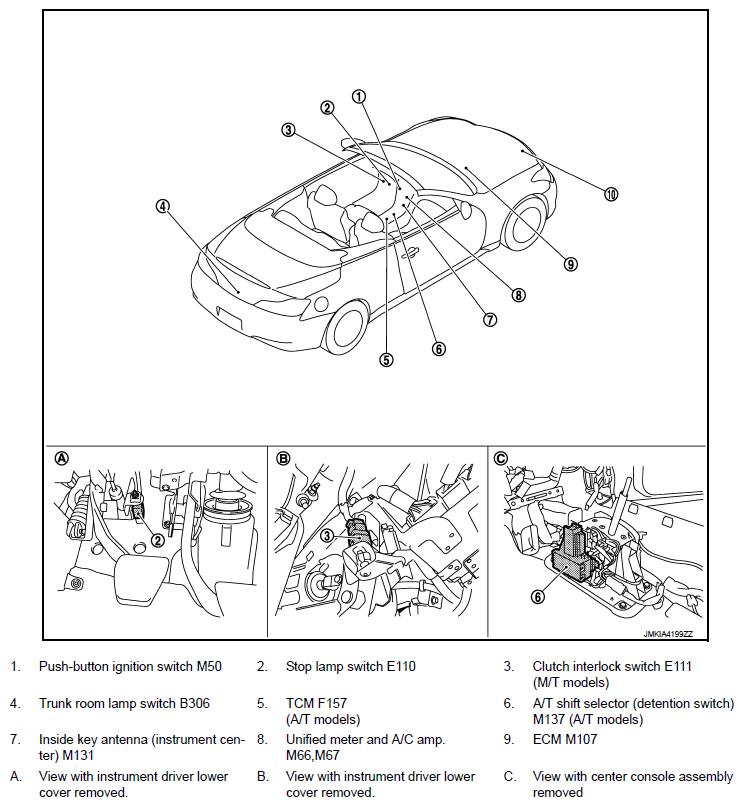

Fig 1: Vehicle Security System Component Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

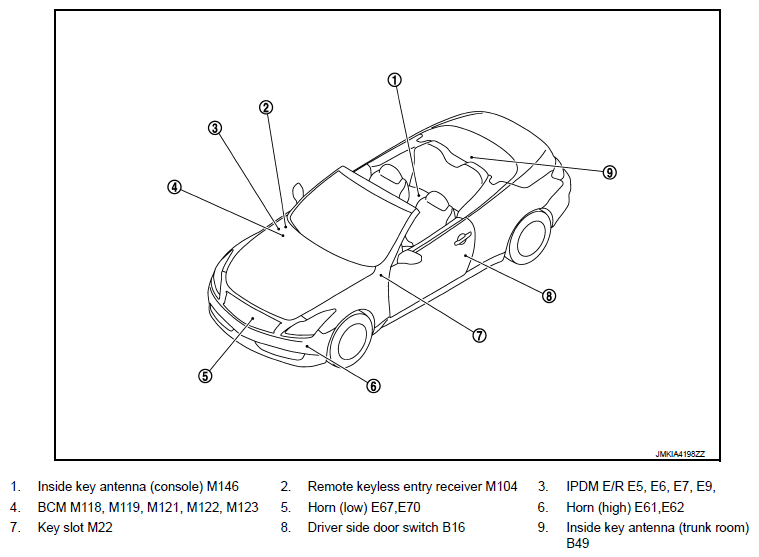

Fig 2: Vehicle Security System Component Location (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
