Component Parts Location

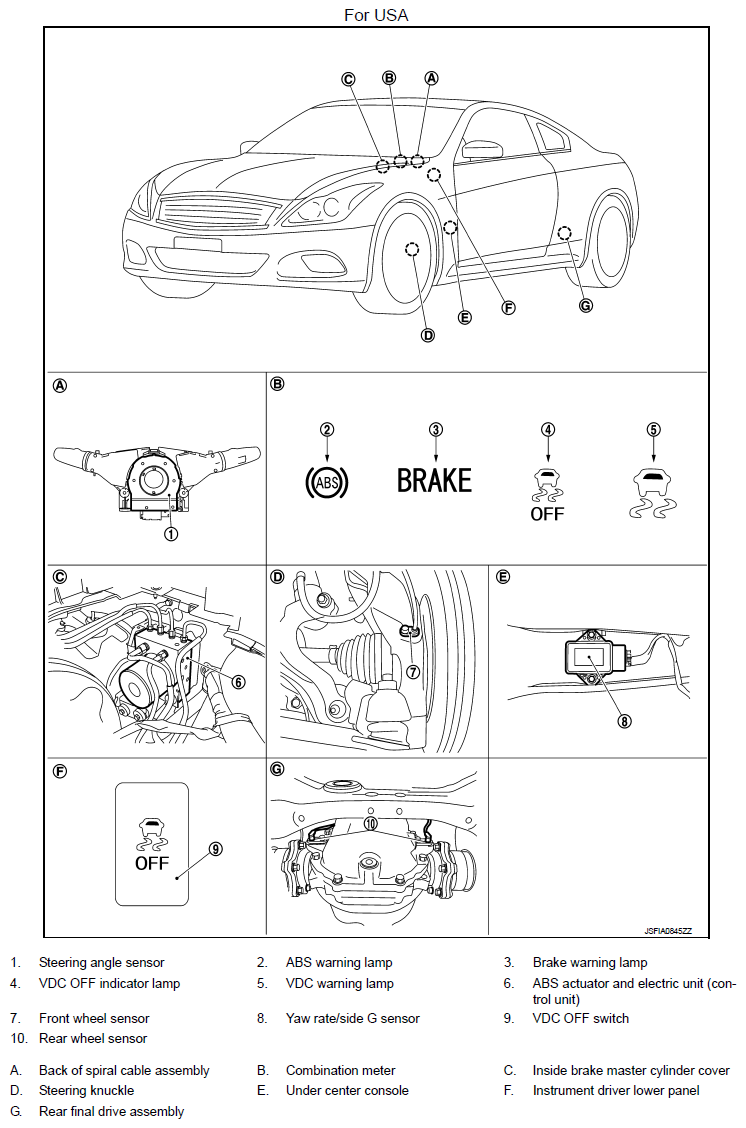

Fig 1: Brake Control System Components Location (For USA)
G09466158Courtesy of NISSAN NORTH AMERICA, INC.

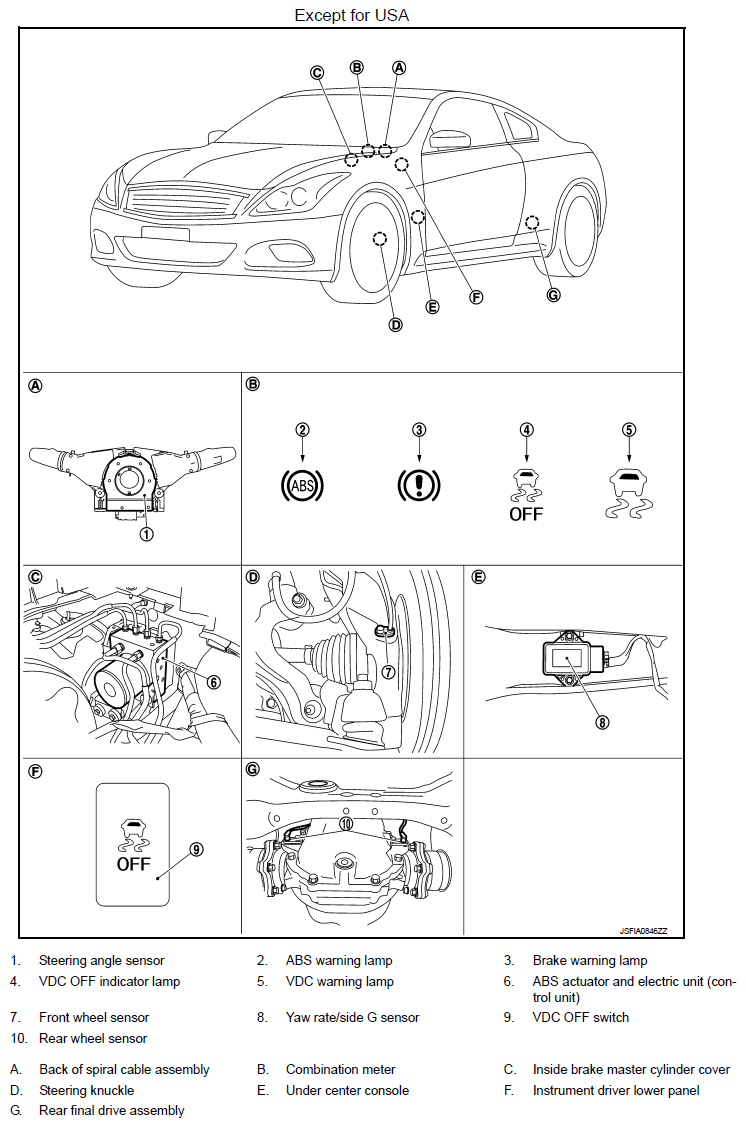

Fig 2: Brake Control System Components Location (Except For USA)
G09466159Courtesy of NISSAN NORTH AMERICA, INC.
