FixVault
Home
›
Infiniti
›
2014
›
Q60 Base, 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Gauges
›
Instrument Panel (Convertible)
›
Removal And Installation
›
Instrument Panel Assembly
›
A/T Models
›
A/T MODELS: Exploded View
A/T MODELS: Exploded View

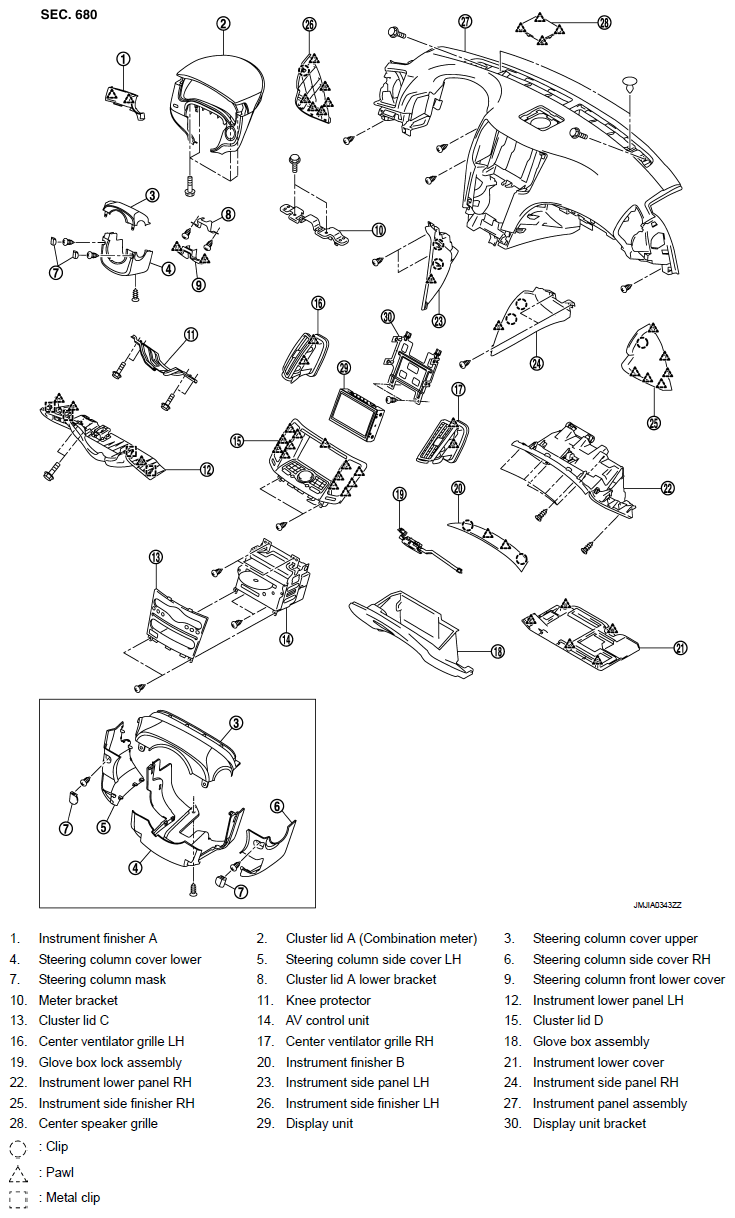

Fig 1: Exploded View Of Instrument Panel Assembly (A/T Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
