Exploded View

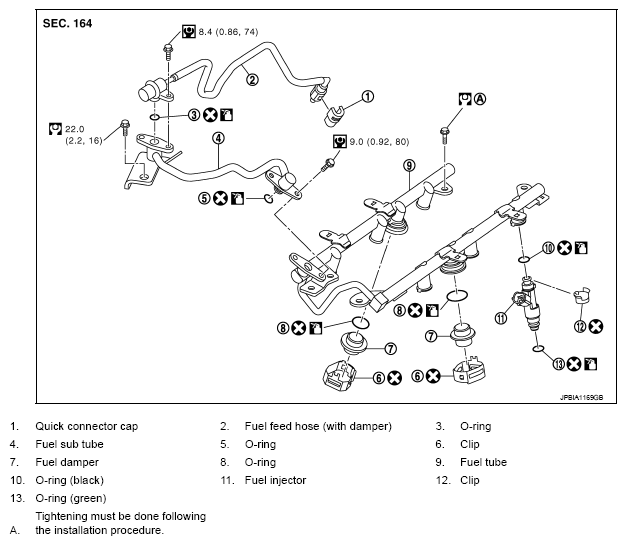

Fig 1: Exploded View Of Fuel Injector And Fuel Tube With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

CAUTION: Never remove or disassemble parts unless instructed.
