Engine Control System Symptoms

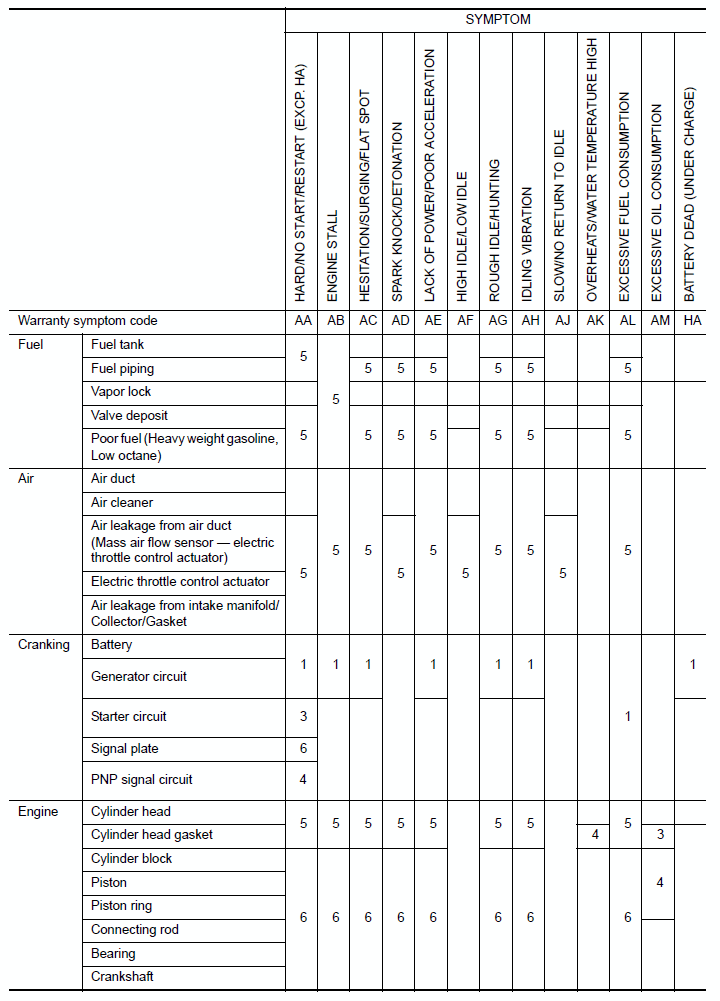

Fig 1: Engine Control System Symptoms Chart (1 Of 2)
G09465592Courtesy of NISSAN NORTH AMERICA, INC.

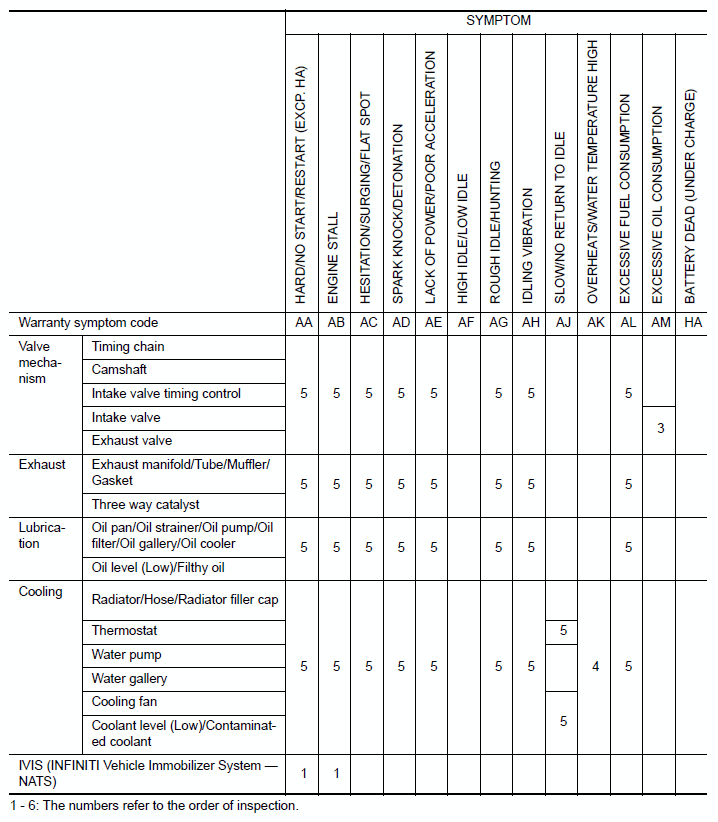

Fig 2: Engine Control System Symptoms Chart (2 Of 2)
G09465593Courtesy of NISSAN NORTH AMERICA, INC.
